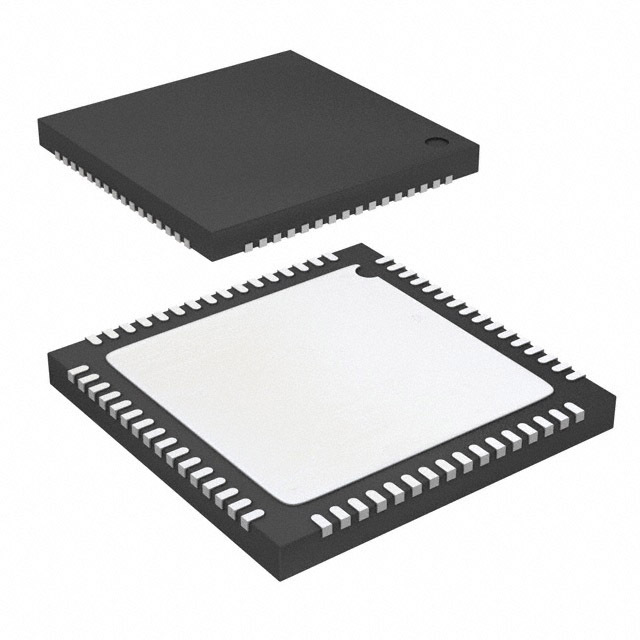

AD9912ABCPZ-REEL7

SKU: 22873

Manufacturer: Analog Devices

Direct Digital Synthesizer 1000MHz 1-DAC 14bit Serial 64-Pin LFCSP EP T/R

190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Digital Interface Type	Serial (2-Wire, 3-Wire, 4-Wire)
Resolution (bit)	14
Tuning Word Width (bit)	48
Number of DACs	1
Number of Outputs	1
Maximum Input Frequency (MHz)	1000
Output Type	Current
Typical Output Current (mA)	20
Operating Supply Voltage-Min (V)	1.71/3.135
Typical Operating Supply Voltage (V)	1.8/3.3
Operating Supply Voltage-Max (V)	1.89/3.465
Maximum Supply Current (mA)	136
Maximum Power Dissipation (mW)	897
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	64
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	9
Package Width	9
PCB changed	64
