AD9689BBPZ-2000

SKU: 58382

Manufacturer: Analog Devices

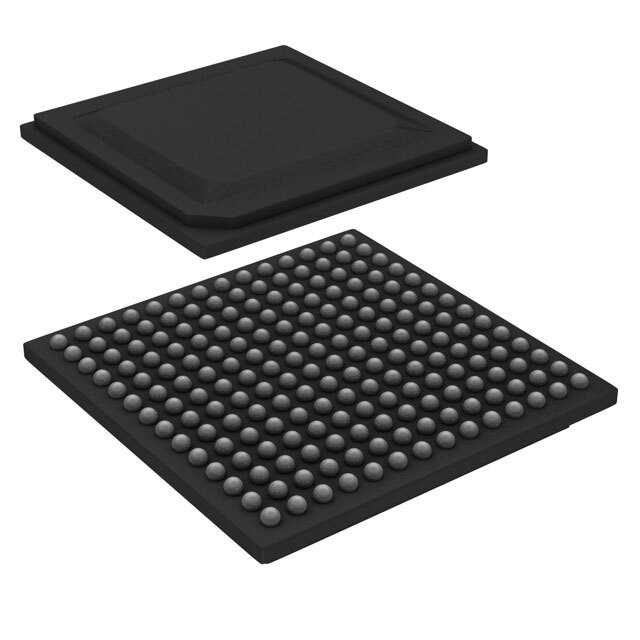

2-Channel Dual ADC Pipelined 2Gsps 14-bit JESD204B 196-Pin TEBGA Tray

2400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001.a.5.a.4
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	14bit
Number of ADCs	2
Number of Input Channels	2
Sampling Rate	2Gsps
Digital Interface Type	JESD204B
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Voltage Supply Source	Analog and Digital
Input Voltage	1.7Vp-p
Minimum Single Supply Voltage (V)	0.95/1.85/2.44
Typical Single Supply Voltage (V)	0.975/1.9/2.5
Maximum Single Supply Voltage (V)	1/1.95/2.56
Maximum Supply Current	585(Typ)
Typical Power Dissipation (mW)	2450
Integral Nonlinearity Error	-9.9/8.1LSB
Full Scale Error	-2.9/1.8%FSR
Signal to Noise Ratio	65dBFS(Typ)
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	TEBGA
Pin Count	196
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.09
Package Length	12
Package Width	12
PCB changed	196
