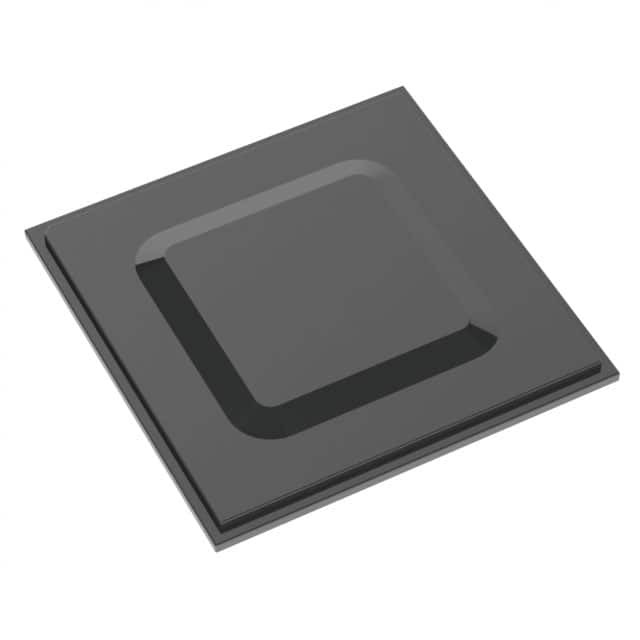

AD9625BBPZ-2.0

SKU: 37079

Manufacturer: Analog Devices

1-Channel Single ADC Pipelined 2Gsps 12-bit JESD204B 196-Pin TEBGA Tray

1640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001a.5.a.3.
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Process Technology	BiCMOS
Architecture	Pipelined
Resolution	12bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	2Gsps
Digital Interface Type	JESD204B
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Voltage Supply Source	Analog and Digital
Input Voltage	1.1Vp-p
Minimum Single Supply Voltage (V)	1.26/2.4
Typical Single Supply Voltage (V)	1.3/2.5
Maximum Single Supply Voltage (V)	1.32/2.6
Typical Power Dissipation (mW)	3480
Maximum Power Dissipation (mW)	3800
Integral Nonlinearity Error	±3.6LSB
Full Scale Error	±8%FSR
Signal to Noise Ratio	59.5dBFS(Typ)
No Missing Codes (bit)	12
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Supplier Temperature Grade	Industrial
Original Package	TEBGA
Pin Count	196
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.26
Package Length	12
Package Width	12
PCB changed	196
