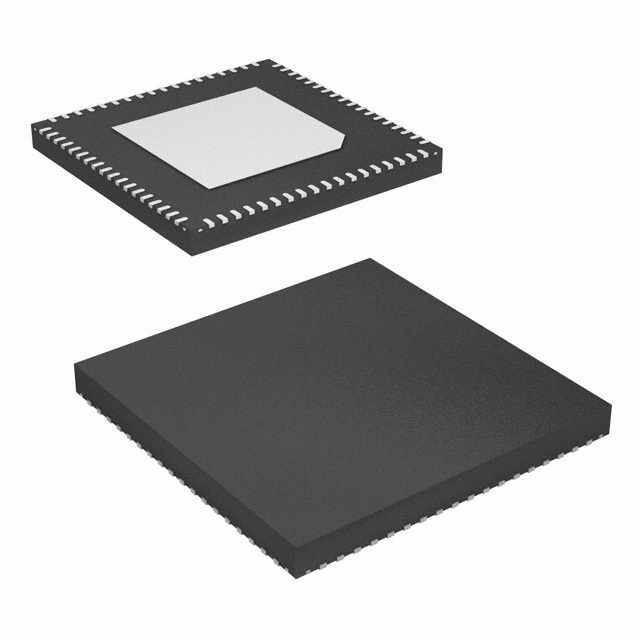

AD9467BCPZ-250

SKU: 123670

Manufacturer: Analog Devices

1-Channel Single ADC Pipelined 250Msps 16-bit Parallel 72-Pin LFCSP EP Tray

370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001.a.5.a.5
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	16bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	250Msps
Digital Interface Type	LVDS
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Voltage Supply Source	Single
Input Voltage	2.5Vp-p
Minimum Single Supply Voltage (V)	1.7/1.75/3
Typical Single Supply Voltage (V)	1.8/3.3
Maximum Single Supply Voltage (V)	1.85/1.9/3.6
Maximum Supply Current	618
Typical Power Dissipation (mW)	1330
Maximum Power Dissipation (mW)	1450
Integral Nonlinearity Error	-11.8/9.5LSB
Full Scale Error	-3.5/2.5%FSR
Signal to Noise Ratio	76.4dBFS(Typ)
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Supplier Temperature Grade	Industrial
Pin Count	72
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	10
Package Width	10
PCB changed	72
