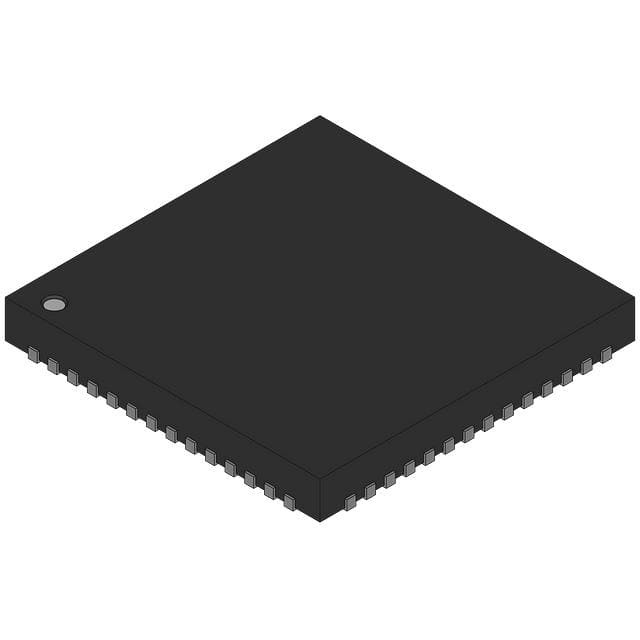

AD9230BCPZ11-200

SKU: 10328

Manufacturer: Analog Devices

1-Channel Single ADC Pipelined 200Msps 11-bit Parallel 56-Pin LFCSP EP Tray

2550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	11bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	200Msps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	1.25Vp-p
Minimum Single Supply Voltage (V)	1.7
Typical Single Supply Voltage (V)	1.8
Maximum Single Supply Voltage (V)	1.9
Typical Power Dissipation (mW)	373
Maximum Power Dissipation (mW)	400
Integral Nonlinearity Error	±0.5LSB
Full Scale Error	-2.2/4.3%FSR
Signal to Noise Ratio	62.9dB
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Supplier Temperature Grade	Industrial
Pin Count	56
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	8
Package Width	8
PCB changed	56
