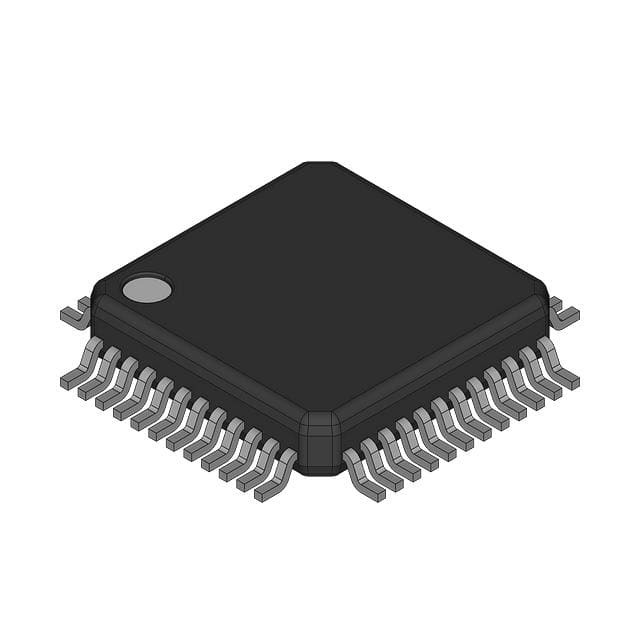

AD9218BSTZ-RL80

SKU: 107686

Manufacturer: Analog Devices

2-Channel Dual ADC Pipelined 80Msps 10-bit Parallel 48-Pin LQFP T/R

1570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	10bit
Number of ADCs	2
Number of Input Channels	2
Sampling Rate	80Msps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Voltage Supply Source	Analog and Digital
Input Voltage	1Vp-p
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	3.6
Typical Power Dissipation (mW)	515
Maximum Power Dissipation (mW)	525
Integral Nonlinearity Error	±1.35LSB
Full Scale Error	-2/8%FSR
Signal to Noise Ratio	58dB(Typ)
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Pin Count	48
Standard Package Method	QFP
Original Package	LQFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	7
Package Width	7
PCB changed	48
