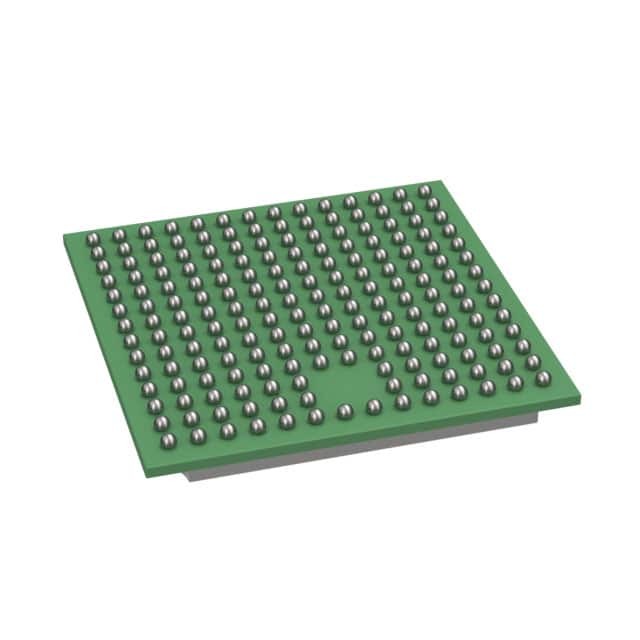

AD9213BBPZ-10G

SKU: 100631

Manufacturer: Analog Devices

1-Channel Single ADC Pipelined 10.25Gsps 12-bit JESD204B 192-Pin TEBGA Tray

2090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001a.5.a.3.
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	12bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	10.25Gsps
Digital Interface Type	JESD204B
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Voltage Supply Source	Dual
Input Voltage	1.4Vp-p
Minimum Dual Supply Voltage (V)	±0.975/1.95
Typical Dual Supply Voltage (V)	±1/2
Maximum Dual Supply Voltage (V)	±1.025/2.05
Maximum Supply Current	2790
Typical Power Dissipation (mW)	4440
Maximum Power Dissipation (mW)	5930
Integral Nonlinearity Error	-8.2/6.2LSB
Full Scale Error	-7/17%FSR
Signal to Noise Ratio	55.9dBFS(Typ)
Sample and Hold	No
Single-Ended Input	No
Digital Supply Support	Yes
Operating Temperature-Min	-20
Operating Temperature-Max	115
Packing Method	Tray
Original Package	TEBGA
Pin Count	192
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.21
Package Length	12
Package Width	12
PCB changed	192
