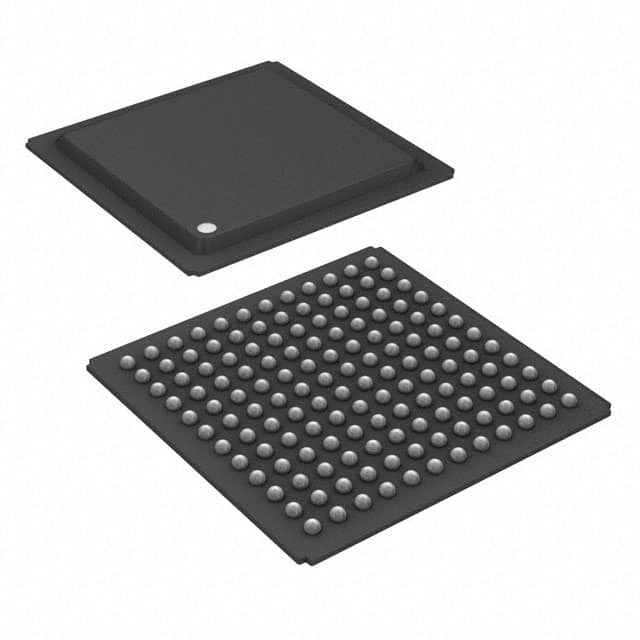

AD9173BBPZ

SKU: 128971

Manufacturer: Analog Devices

DAC 2-CH Interpolation Filter 16-bit 144-Pin TEBGA Tray

2310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Converter Type	RF
Architecture	Interpolation Filter
Resolution	16bit
Conversion Rate	12.6Gsps
Number of DAC Channels	2
Number of Outputs per Chip	2
Digital Interface Type	JESD204B
Output Type	Current
Output Polarity	Unipolar
Voltage Reference	Internal
Minimum Single Supply Voltage (V)	0.95/1.71
Typical Single Supply Voltage (V)	1/1.8
Maximum Single Supply Voltage (V)	1.05/1.89
Power Supply Type	Analog and Digital
Maximum Power Dissipation (mW)	3690
Integral Nonlinearity Error	±7LSB(Typ)
Full Scale Error	±15%FSR(Typ)
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	TEBGA
Pin Count	144
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.21
Package Length	10
Package Width	10
PCB changed	144
