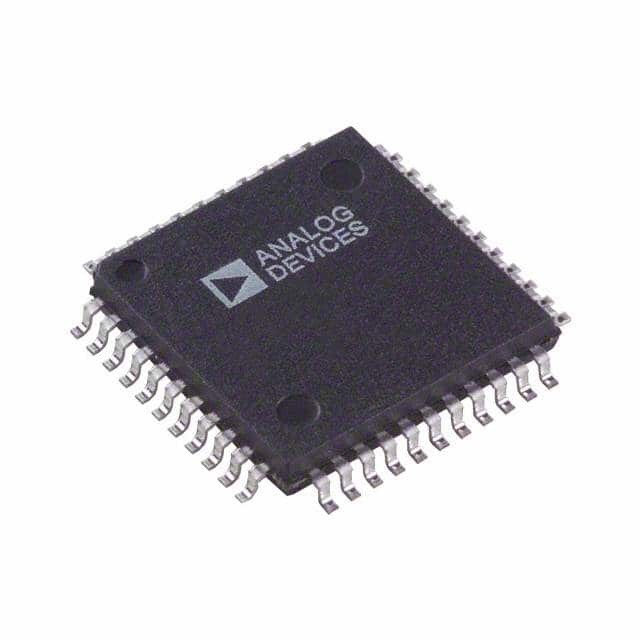

AD9054ABSTZ-135

SKU: 44161

Manufacturer: Analog Devices

1-Channel Single ADC Pipelined 135Msps 8-bit Parallel 44-Pin LQFP Tray

3130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	8bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	135Msps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Single
Input Voltage	±0.512Vp-p
Typical Single Supply Voltage (V)	5
Typical Power Dissipation (mW)	600
Maximum Power Dissipation (mW)	700
Integral Nonlinearity Error	-1/2LSB
Full Scale Error	±7%FSR
Signal to Noise Ratio	45dB(Typ)
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Supplier Temperature Grade	Industrial
Pin Count	44
Standard Package Method	QFP
Original Package	LQFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	10
Package Width	10
PCB changed	44
