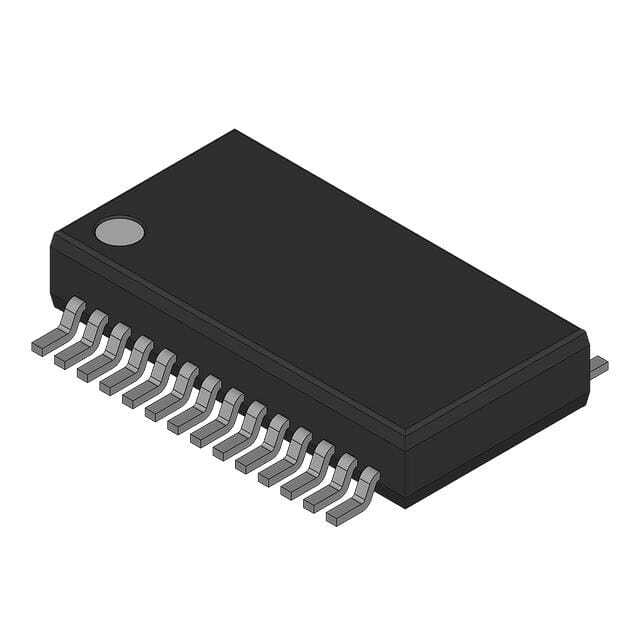

AD9051BRSZRL-2V

SKU: 137883

Manufacturer: Analog Devices

1-Channel Single ADC Pipelined 60Msps 10-bit Parallel 28-Pin SSOP T/R

1790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	Video
Architecture	Pipelined
Resolution	10bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	60Msps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	2Vp-p
Typical Single Supply Voltage (V)	5
Typical Power Dissipation (mW)	250
Maximum Power Dissipation (mW)	315
Integral Nonlinearity Error	1.5LSB
Full Scale Error	±5.5%FSR
Signal to Noise Ratio	56.5dB(Typ)
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Pin Count	28
Standard Package Method	SOP
Original Package	SSOP
Terminal Form	Surface Mount
Package Height	1.75
Package Length	10.2
Package Width	5.3
PCB changed	28
