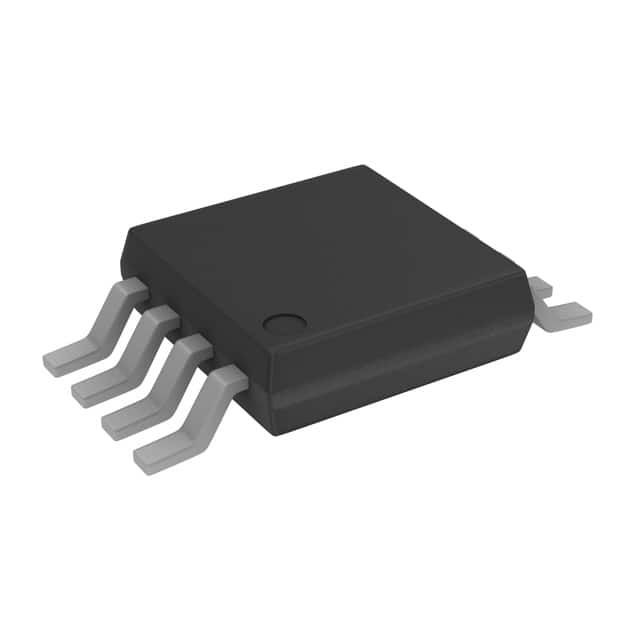

AD8469WBRMZ

SKU: 37070

Manufacturer: Analog Devices

Comparator Single R-R I/P 5.5V Automotive 8-Pin MSOP Tube

4380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Manufacturer Type	Fast Comparator
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Input
Process Technology	CMOS
Typical CMRR (dB)	50(Min)
Typical PSRR (dB)	50(Min)
Maximum Propagation Delay Time (ns)	60(Typ)
Output Type	CMOS/TTL
Operating Supply Voltage-Max (V)	5.5
Maximum Input Offset Voltage (mV)	3(Typ)@2.5V
Minimum Single Supply Voltage (V)	2.5
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Typical Voltage Gain (dB)	80
Typical Voltage Gain Range (dB)	70 to 90
Maximum Input Bias Current (uA)	0.4@2.5V@-40C to 125C
Maximum Supply Current (mA)	0.8(Typ)@5.5V
Typical Output Current (mA)	50(Max)
Maximum Power Dissipation (mW)	7
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Standard Package Method	MSOP
Pin Count	8
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.85
Package Length	3
Package Width	3
PCB changed	8
