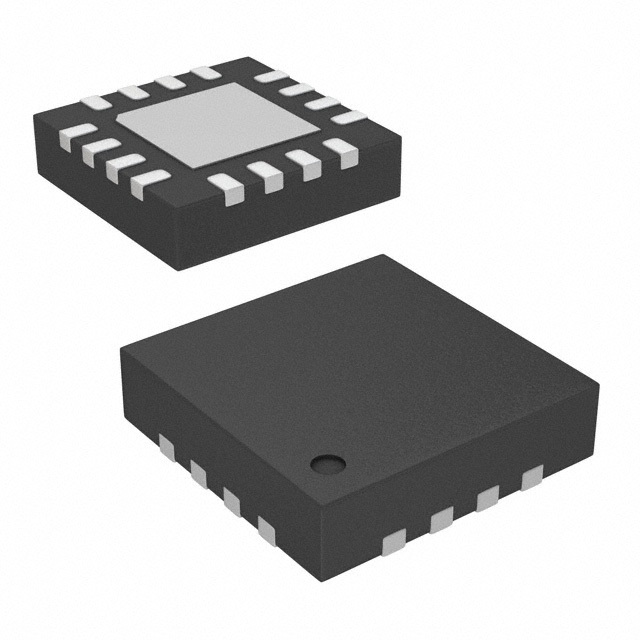

AD8338ACPZ-R7

SKU: 137861

Manufacturer: Analog Devices

SP Amp Variable Gain Amp Single 5V 16-Pin LFCSP EP T/R

270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Variable Gain Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Maximum Voltage Gain Range (dB)	75 to 100
Maximum Voltage Gain (dB)	80
Output Type	Differential
Maximum Input Offset Voltage (mV)	200@3V
Operating Supply Voltage-Max (V)	5
Maximum Supply Voltage Range (V)	5 to 7
Minimum Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5
Maximum Supply Current (mA)	8@3V
Maximum Input Resistance (MOhm)	0.0012@3V
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Power Supply Type	Single
Pin Count	16
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	3
Package Width	3
PCB changed	16
