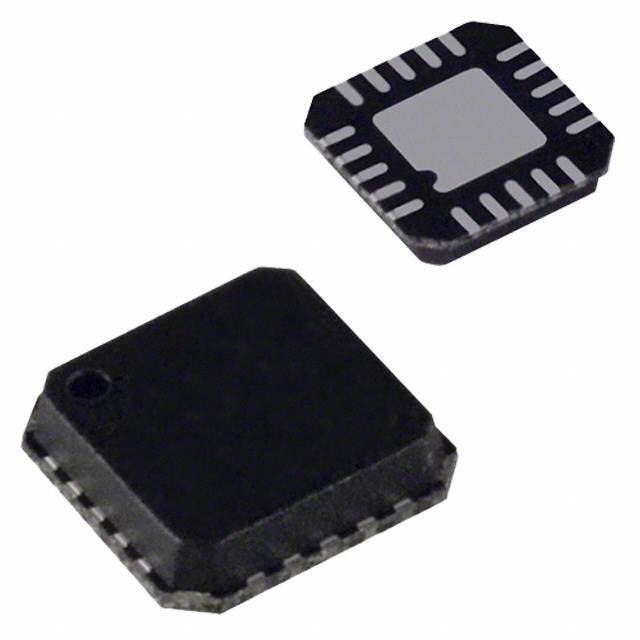

AD8324ACPZ

SKU: 144886

Manufacturer: Analog Devices

SP Amp Line Driver Amp Single 3.47V 20-Pin LFCSP EP Tray

1050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Line Driver
Number of Elements per pcs	1
Number of Channels per Chip	1
Maximum Voltage Gain Range (dB)	60 to 75
Maximum Voltage Gain (dB)	60
Output Type	Differential
Operating Supply Voltage-Max (V)	3.47
Maximum Supply Voltage Range (V)	<5
Minimum Single Supply Voltage (V)	3.13
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.47
Maximum Input Resistance (MOhm)	0.0011(Typ)@3.3V
Maximum Power Dissipation (mW)	776
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Power Supply Type	Single
Pin Count	20
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	4
Package Width	4
PCB changed	20
