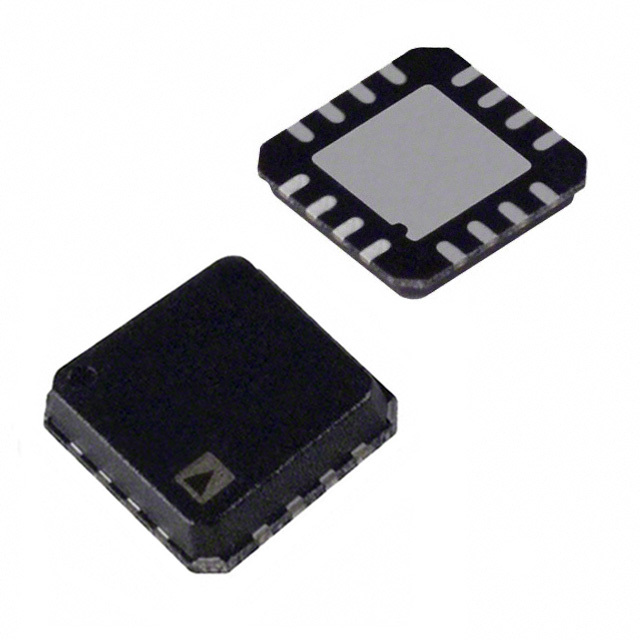

AD8270ACPZ-R7

SKU: 45897

Manufacturer: Analog Devices

SP Amp Difference Amplifier Dual R-R I/P ±18V 16-Pin LFCSP EP T/R

2420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Difference Amplifier
Number of Elements per pcs	2
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Input
Typical Gain Bandwidth Product (MHz)	20
Minimum CMRR Range (dB)	60 to 75
Minimum CMRR (dB)	70
Minimum PSRR (dB)	113.98(Typ)
Output Type	Differential
Maximum Input Offset Voltage (mV)	1.5@±5V
Operating Supply Voltage-Max (V)	±18
Maximum Supply Voltage Range (V)	30 to 50
Minimum Dual Supply Voltage (V)	±2.5
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±18
Maximum Input Bias Current (uA)	0.5@±5V
Maximum Supply Current (mA)	5@±5V
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Power Supply Type	Dual
Pin Count	16
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	4
Package Width	4
PCB changed	16
