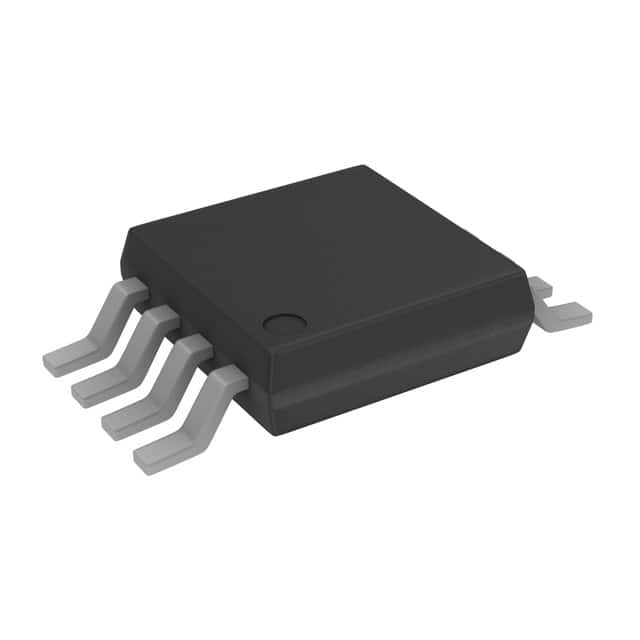

AD8219BRMZ-RL

SKU: 44150

Manufacturer: Analog Devices

SP Amp Current Shunt Monitor Single 80V 8-Pin MSOP T/R

3770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Current Shunt Monitor
Number of Elements per pcs	1
Number of Channels per Chip	1
Maximum Voltage Gain Range (dB)	35 to 50
Maximum Voltage Gain (dB)	35.56(Typ)
Minimum CMRR Range (dB)	85 to 95
Minimum CMRR (dB)	94
Minimum PSRR (dB)	100
Maximum Input Offset Voltage (mV)	0.2
Operating Supply Voltage-Max (V)	80
Maximum Supply Voltage Range (V)	>=50
Minimum Single Supply Voltage (V)	4
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	80
Maximum Input Bias Current (uA)	130(Typ)@4V
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Power Supply Type	Single
Pin Count	8
Standard Package Method	MSOP
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.85
Package Length	3
Package Width	3
PCB changed	8
