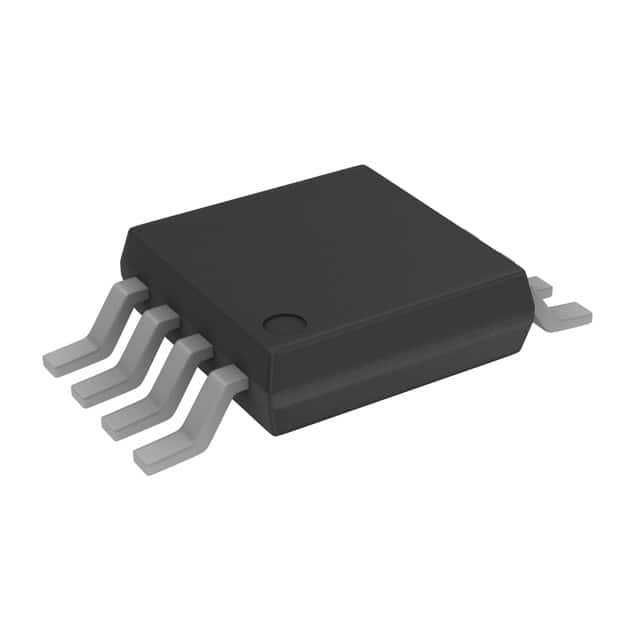

AD8226ARMZ

SKU: 95252

Manufacturer: Analog Devices

INST Amp Single R-R O/P ±18V/36V 8-Pin MSOP Tube

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Output
Maximum Voltage Gain (dB)	60
Maximum Voltage Gain Range (dB)	60 to 75
Minimum CMRR (dB)	80
Minimum CMRR Range (dB)	75 to 85
Maximum Input Offset Voltage (mV)	0.1@±15V
Operating Supply Voltage-Max (V)	36
Maximum Supply Voltage Range (V)	30 to 50
Minimum Single Supply Voltage (V)	2.2
Typical Single Supply Voltage (V)	28
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±1.35
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±18
Maximum Input Bias Current (uA)	0.027@±15V
Maximum Input Resistance (MOhm)	800(Typ)@±15V
Power Supply Type	Dual
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Pin Count	8
Standard Package Method	MSOP
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.85
Package Length	3
Package Width	3
PCB changed	8
