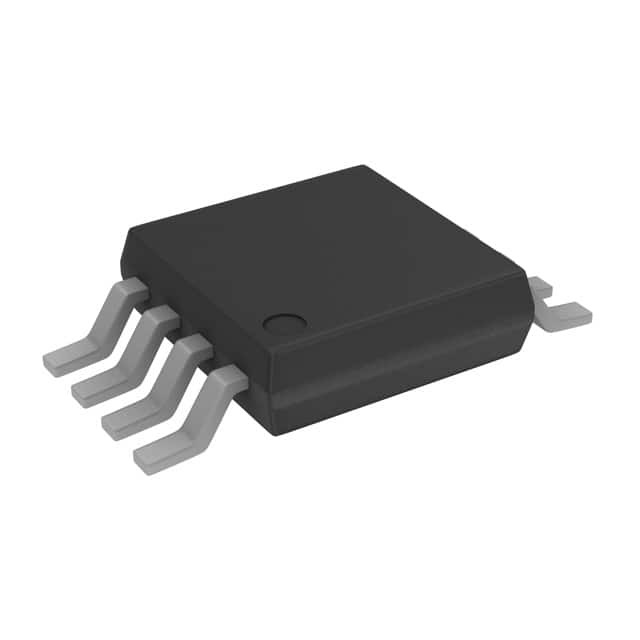

AD8220TRMZ-EP

SKU: 44148

Manufacturer: Analog Devices

INST Amp Single R-R O/P ±18V/36V 8-Pin MSOP Tube

1400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Output
Minimum CMRR (dB)	72
Minimum CMRR Range (dB)	60 to 75
Maximum Input Offset Voltage (mV)	0.3@5V
Operating Supply Voltage-Max (V)	±18
Maximum Supply Voltage Range (V)	30 to 50
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±2.25
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±18
Maximum Input Bias Current (uA)	0.000025@5V
Maximum Input Resistance (MOhm)	0.04(Typ)@5V
Power Supply Type	Single
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Extended Industrial
Packing Method	Tube
Original Package	MSOP
Pin Count	8
Standard Package Method	MSOP
Terminal Form	Surface Mount
Package Height	0.85
Package Length	3
Package Width	3
PCB changed	8
