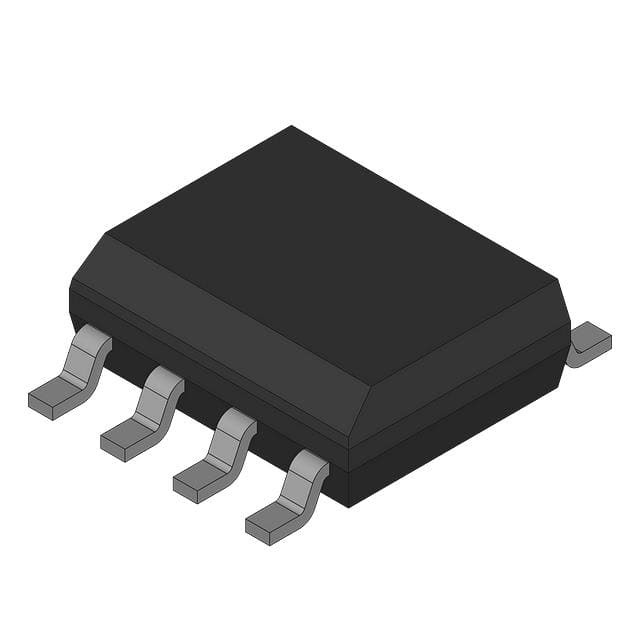

AD8138AR

SKU: 81093

Manufacturer: Analog Devices

SP Amp DIFF AMP Single ±5.5V/11V 8-Pin SOIC N Tube

3570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.33.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Differential Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Maximum Voltage Gain Range (dB)	<35
Maximum Voltage Gain (dB)	0.028
Minimum CMRR Range (dB)	60 to 75
Minimum CMRR (dB)	70(Max)
Minimum PSRR (dB)	70(Max)
Output Type	Differential
Typical Output Current (mA)	95@5V
Maximum Input Offset Voltage (mV)	2.5@5V
Operating Supply Voltage-Max (V)	±5.5
Maximum Supply Voltage Range (V)	10 to 15
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	11
Minimum Dual Supply Voltage (V)	±1.4
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±5.5
Maximum Input Bias Current (uA)	7@5V
Maximum Input Resistance (MOhm)	6(Typ)@5V
Maximum Power Dissipation (mW)	550
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Power Supply Type	Single
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
