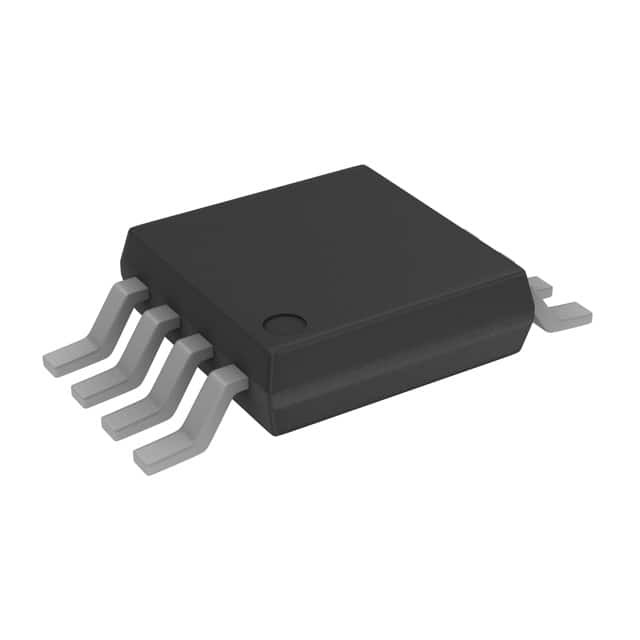

AD8131ARMZ-REEL7

SKU: 95249

Manufacturer: Analog Devices

SP Amp DIFF Line Driver Amp Single ±5.5V/11V 8-Pin MSOP T/R

10100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Differential Line Driver
Number of Elements per pcs	1
Number of Channels per Chip	1
Maximum Voltage Gain Range (dB)	<35
Maximum Voltage Gain (dB)	6.19
Minimum CMRR Range (dB)	60 to 75
Minimum CMRR (dB)	70(Typ)
Minimum PSRR (dB)	70(Typ)
Output Type	Differential
Typical Output Current (mA)	45@5V
Maximum Input Offset Voltage (mV)	12@5V
Operating Supply Voltage-Max (V)	±5.5
Maximum Supply Voltage Range (V)	10 to 15
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	9
Maximum Single Supply Voltage (V)	11
Minimum Dual Supply Voltage (V)	±1.4
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±5.5
Maximum Input Bias Current (uA)	0.5(Typ)@5V
Maximum Input Resistance (MOhm)	0.0015@5V
Maximum Power Dissipation (mW)	250
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Power Supply Type	Single
Pin Count	8
Standard Package Method	MSOP
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.85
Package Length	3
Package Width	3
PCB changed	8
