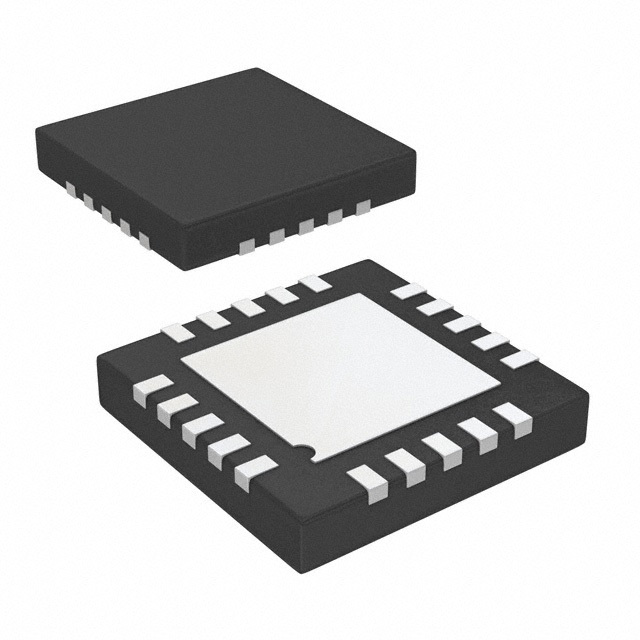

AD7985BCPZ

SKU: 65353

Manufacturer: Analog Devices

1-Channel Single ADC SAR 2.5Msps 16-bit Serial 20-Pin LFCSP EP Tray

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	16bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	2.5Msps
Digital Interface Type	Serial (3-Wire, 4-Wire, SPI, QSPI, Microwire)
Input Type	Voltage
Input Signal Type	Pseudo-Differential
Voltage Reference	Internal
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Analog and Digital
Input Voltage	4.096V
Minimum Single Supply Voltage (V)	2.375
Typical Single Supply Voltage (V)	2.5
Maximum Single Supply Voltage (V)	2.625
Typical Power Dissipation (mW)	28
Maximum Power Dissipation (mW)	33
Integral Nonlinearity Error	±1.5LSB
Full Scale Error	±15LSB
Signal to Noise Ratio	90dB(Typ)
No Missing Codes (bit)	16
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	LFCSP EP
Pin Count	20
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	4
Package Width	4
PCB changed	20
