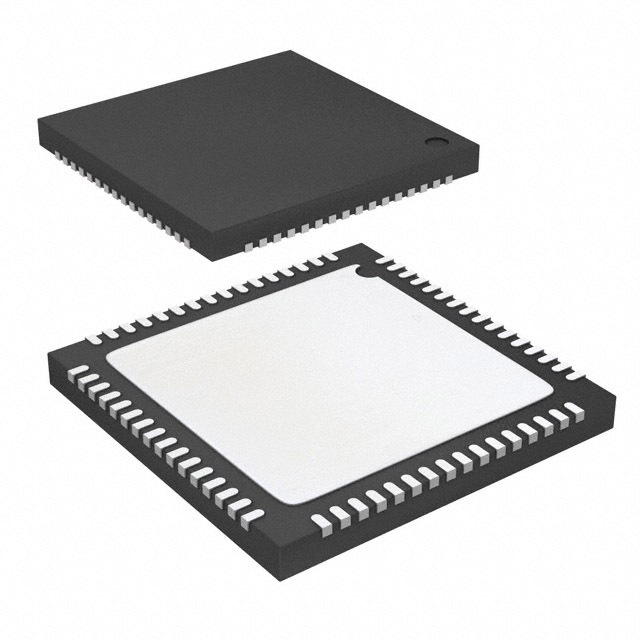

AD7779ACPZ

SKU: 136070

Manufacturer: Analog Devices

8-Channel Octal ADC Delta-Sigma 16ksps 24-bit Serial 64-Pin LFCSP EP Tray

2740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Delta-Sigma
Resolution	24bit
Number of ADCs	8
Number of Input Channels	8
Sampling Rate	16ksps
Digital Interface Type	Serial (SPI)
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	2.5V
Minimum Single Supply Voltage (V)	2.2/3
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.6
Typical Dual Supply Voltage (V)	±1.65
Typical Power Dissipation (mW)	86
Maximum Power Dissipation (mW)	133
Integral Nonlinearity Error	1.5LSB(Typ)
Full Scale Error	±0.1%FSR(Typ)
Signal to Noise Ratio	66dB(Typ)
No Missing Codes (bit)	24
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Original Package	LFCSP EP
Pin Count	64
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	9
Package Width	9
PCB changed	64
