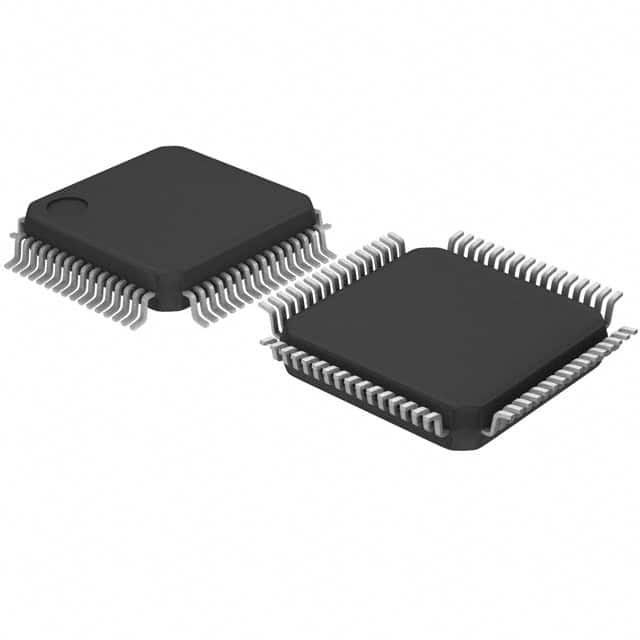

AD7768BSTZ

SKU: 123609

Manufacturer: Analog Devices

8-Channel Octal ADC Delta-Sigma 256ksps 24-bit Serial 64-Pin LQFP Tray

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Delta-Sigma
Resolution	24bit
Number of ADCs	8
Number of Input Channels	8
Sampling Rate	256ksps
Digital Interface Type	Serial (3-Wire, 4-Wire, SPI, QSPI, Microwire)
Input Type	Voltage
Input Signal Type	Pseudo-Differential
Voltage Reference	External
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Single
Input Voltage	±4.096V
Minimum Single Supply Voltage (V)	2/4.5
Typical Single Supply Voltage (V)	3.3/5
Maximum Single Supply Voltage (V)	5.5
Maximum Supply Current	69
Typical Power Dissipation (mW)	638
Maximum Power Dissipation (mW)	704
Integral Nonlinearity Error	±7ppm of FSR
Full Scale Error	±120ppm of FSR
Signal to Noise Ratio	111dB(Typ)
No Missing Codes (bit)	24
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Pin Count	64
Standard Package Method	QFP
Original Package	LQFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	10
Package Width	10
PCB changed	64
