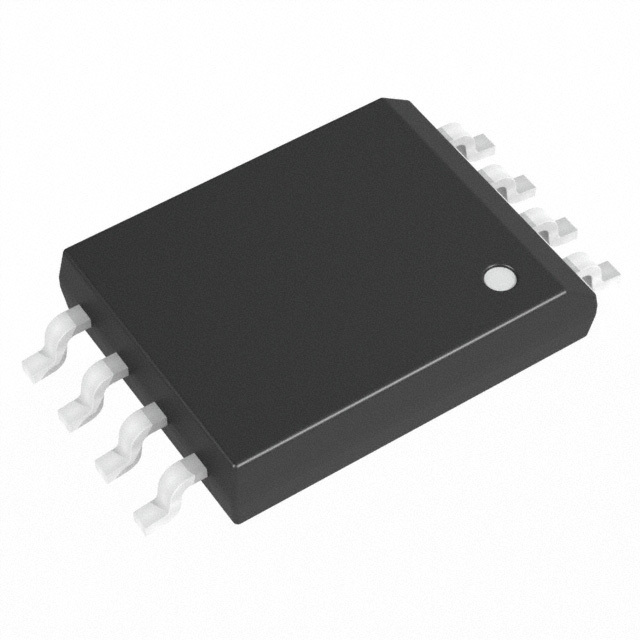

AD7403-8BRIZ-RL7

SKU: 22840

Manufacturer: Analog Devices

1-Channel Single ADC Delta-Sigma 20Msps 16-bit Serial Medical 8-Pin SOIC W T/R

1000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Delta-Sigma
Resolution	16bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	20Msps
Digital Interface Type	Serial
Input Type	Voltage
Input Signal Type	Single-Ended
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Single
Input Voltage	±0.25V/±0.32V
Minimum Single Supply Voltage (V)	3/4.5
Typical Single Supply Voltage (V)	3.3/5
Maximum Single Supply Voltage (V)	5.5
Typical Power Dissipation (mW)	231
Maximum Power Dissipation (mW)	297
Integral Nonlinearity Error	±12LSB
Full Scale Error	±1.2%FSR
Signal to Noise Ratio	88dB(Typ)
No Missing Codes (bit)	16
Sample and Hold	No
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Original Package	SOIC W
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.35
Package Length	5.85
Package Width	7.5
PCB changed	8
