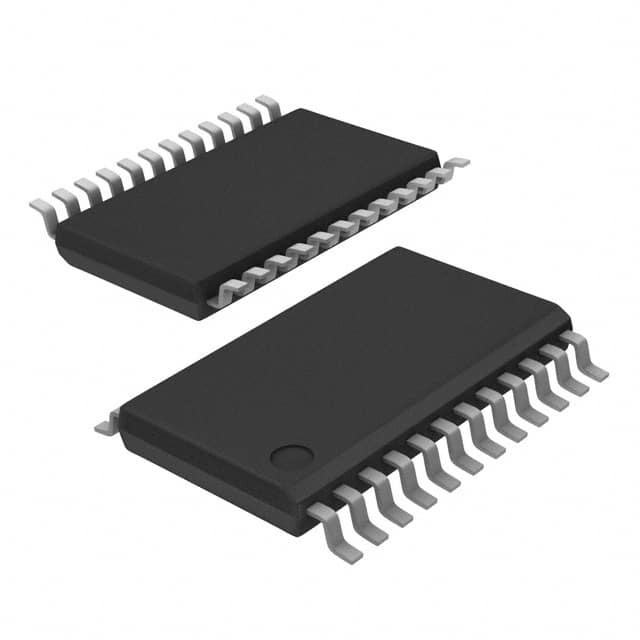

AD7367BRUZ-5-RL7

SKU: 72365

Manufacturer: Analog Devices

4-Channel Dual ADC SAR 500ksps 14-bit Serial 24-Pin TSSOP T/R

1070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	14bit
Number of ADCs	2
Number of Input Channels	4
Sampling Rate	500ksps
Digital Interface Type	Serial (SPI, QSPI, Microwire)
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Dual
Input Voltage	10V
Minimum Dual Supply Voltage (V)	±5/4.75
Typical Dual Supply Voltage (V)	±9/5
Maximum Dual Supply Voltage (V)	±16.5/5.25
Typical Power Dissipation (mW)	46
Maximum Power Dissipation (mW)	54.5
Integral Nonlinearity Error	±3.5LSB
Full Scale Error	±25LSB
Signal to Noise Ratio	76dB(Typ)
No Missing Codes (bit)	14
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	TSSOP
Pin Count	24
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	7.8
Package Width	4.4
PCB changed	24
