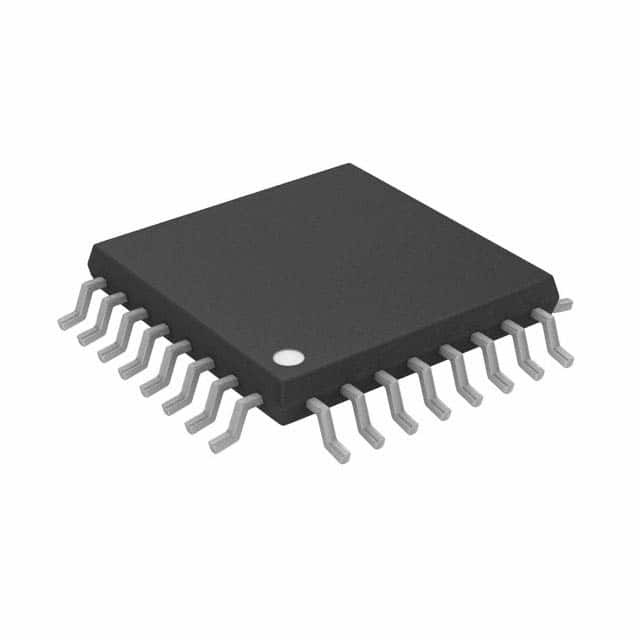

AD7265BSUZ

SKU: 24539

Manufacturer: Analog Devices

12-Channel Dual ADC SAR 1Msps 12-bit Serial 32-Pin TQFP Tray

2480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	12bit
Number of ADCs	2
Number of Input Channels	6
Sampling Rate	1Msps
Digital Interface Type	Serial (SPI, QSPI, Microwire)
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	External
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Analog and Digital
Input Voltage	2.5V/5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.25
Maximum Supply Current	4
Maximum Power Dissipation (mW)	21
Integral Nonlinearity Error	±1.5LSB
Full Scale Error	±2.5LSB
Signal to Noise Ratio	71dB(Min)
No Missing Codes (bit)	12
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tray
Pin Count	32
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1
Package Length	7
Package Width	7
PCB changed	32
