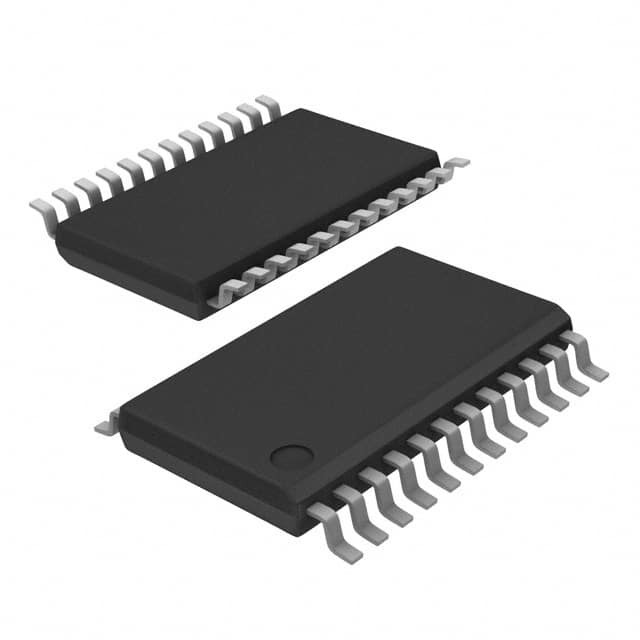

AD7190WBRUZ-RL

SKU: 10263

Manufacturer: Analog Devices

4-Channel Single ADC Delta-Sigma 4.8ksps 24-bit Serial Automotive 24-Pin TSSOP T/R

2160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Converter Type	Temperature Measurement
Architecture	Delta-Sigma
Resolution	24bit
Number of ADCs	1
Number of Input Channels	4
Sampling Rate	4.8ksps
Digital Interface Type	Serial (3-Wire, SPI, QSPI, Microwire)
Input Type	Voltage
Input Signal Type	Pseudo-Differential
Voltage Reference	External
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Analog and Digital
Input Voltage	±5.25V
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Maximum Power Dissipation (mW)	36.8
Integral Nonlinearity Error	±30ppm of FSR
Full Scale Error	±0.0075%FSR
No Missing Codes (bit)	24
Sample and Hold	No
Single-Ended Input	No
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Pin Count	24
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	7.8
Package Width	4.4
PCB changed	24
