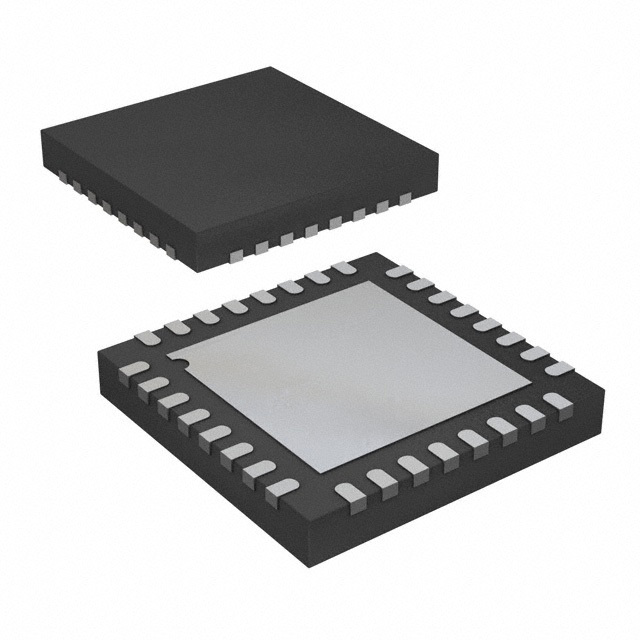

AD7172-4BCPZ

SKU: 44126

Manufacturer: Analog Devices

8-Channel Single ADC Delta-Sigma 31.25ksps 24-bit Serial Medical 32-Pin LFCSP EP Tray

2740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Delta-Sigma
Resolution	24bit
Number of ADCs	1
Number of Input Channels	8
Sampling Rate	31.25ksps
Digital Interface Type	Serial (3-Wire, 4-Wire, SPI, QSPI, Microwire)
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	External
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Single
Input Voltage	±2.5V
Minimum Single Supply Voltage (V)	2/3
Typical Single Supply Voltage (V)	2.5/3.3
Maximum Single Supply Voltage (V)	5.5
Maximum Supply Current	2.15
Maximum Power Dissipation (mW)	22.4
Integral Nonlinearity Error	±5.2ppm of FSR
Full Scale Error	±45ppm of FSR
No Missing Codes (bit)	24
Sample and Hold	No
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Original Package	LFCSP EP
Pin Count	32
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	5
Package Width	5
PCB changed	32
