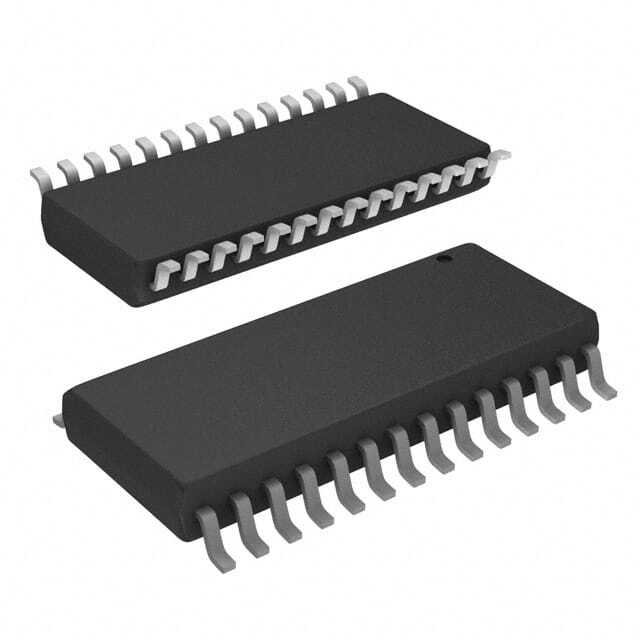

AD565AJRZ

SKU: 137794

Manufacturer: Analog Devices

DAC 1-CH Current Steering 12-bit 28-Pin SOIC W Tube

1810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Current Steering
Resolution	12bit
Number of DAC Channels	1
Number of Outputs per Chip	1
Maximum Settling Time (us)	0.4
Digital Interface Type	Parallel
Output Type	Current
Output Polarity	Unipolar
Voltage Reference	Internal
Minimum Dual Supply Voltage (V)	±11.4
Typical Dual Supply Voltage (V)	±12
Maximum Dual Supply Voltage (V)	±16.5
Power Supply Type	Dual
Maximum Power Dissipation (mW)	345
Integral Nonlinearity Error	±0.75LSB
Full Scale Error	±0.25%FSR
Digital Supply Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Pin Count	28
Standard Package Method	SOP
Original Package	SOIC W
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	18.1(Max)
Package Width	7.6(Max)
PCB changed	28
