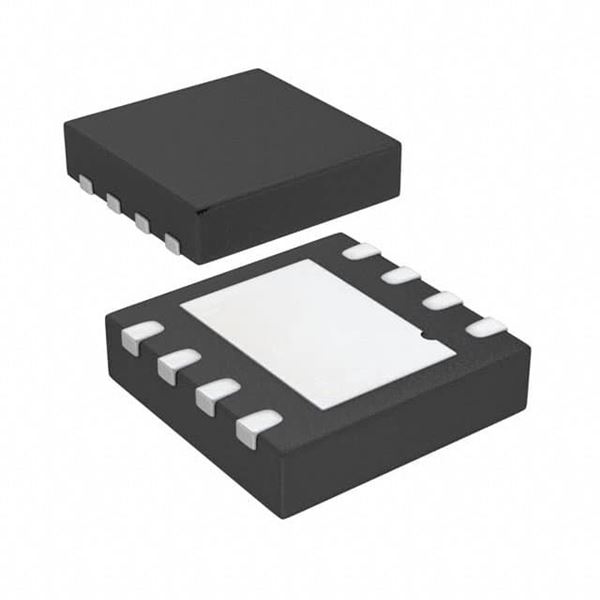

AD5453WBCPZ-RL

SKU: 58317

Manufacturer: Analog Devices

DAC 1-CH Segment 14-bit Automotive 8-Pin LFCSP EP T/R

1370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Converter Type	General Purpose
Architecture	Segment
Resolution	14bit
Conversion Rate	2.7Msps
Number of DAC Channels	1
Number of Outputs per Chip	1
Maximum Settling Time (us)	0.11
Digital Interface Type	Serial (3-Wire, SPI, QSPI, Microwire)
Output Type	Current
Voltage Reference	External
Minimum Single Supply Voltage (V)	2.5
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Integral Nonlinearity Error	±2LSB
Full Scale Error	±2.5LSB
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Pin Count	8
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.75
Package Length	3
Package Width	3
PCB changed	8
