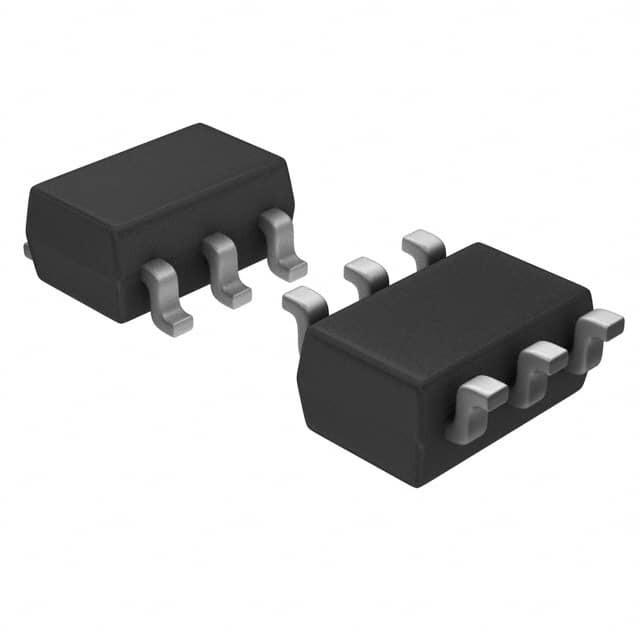

AD5310BRTZ-REEL7

SKU: 137783

Manufacturer: Analog Devices

DAC 1-CH Resistor-String 10-bit 6-Pin SOT-23 T/R

6660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Resistor-String
Resolution	10bit
Conversion Rate	167ksps
Number of DAC Channels	1
Number of Outputs per Chip	1
Maximum Settling Time (us)	8
Digital Interface Type	Serial (3-Wire, SPI, QSPI, Microwire)
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Integral Nonlinearity Error	±4LSB
Full Scale Error	-1.25%FSR
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Original Package	SOT-23
Pin Count	6
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1.15
Package Length	2.9
Package Width	1.6
PCB changed	6
