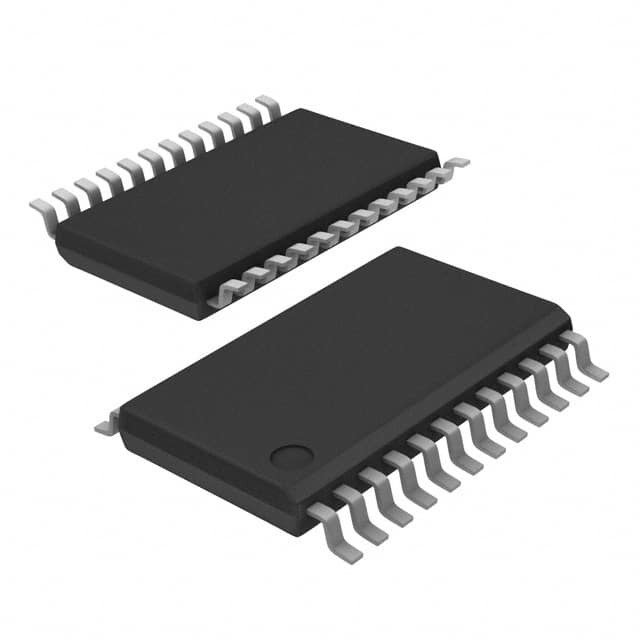

AD5263BRUZ20-REEL7

SKU: 144815

Manufacturer: Analog Devices

Digital Potentiometer 20kOhm 256POS Volatile Linear Automotive 24-Pin TSSOP T/R

1730 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Unknown
PPAP	Unknown
Taper Type	Linear
Number of Pot per Package	4
Number of Positions	256
Memory Type	Volatile
Resistance Value (kOhm)	20
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	16.5
Maximum Dual Supply Voltage (V)	±7.5
Typical Dual Supply Voltage (V)	±5
Minimum Dual Supply Voltage (V)	±4.5
Digital Supply Voltage (V)	2.7 to 5.5
Maximum Supply Current (mA)	0.001
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Pin Count	24
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	7.8
Package Width	4.4
PCB changed	24
