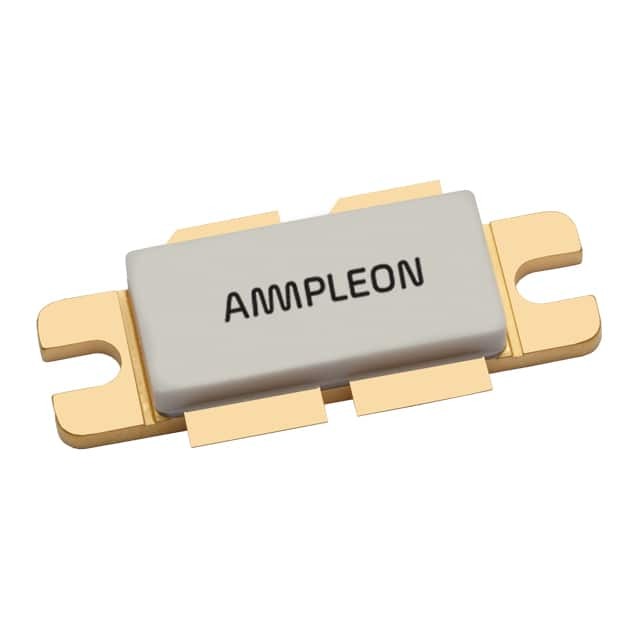

BLF645

SKU: 46501

Manufacturer: Ampleon

Trans RF FET N-CH 65V 32A 5-Pin LDMOST

4070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
Automotive	Unknown
PPAP	Unknown
Configuration	Dual Common Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Mode of Operation	2-Tone Class-AB
Process Technology	LDMOS
Maximum Drain Source Voltage (V)	65
Maximum Gate Source Voltage (V)	11
Maximum VSWR	10
Maximum Continuous Drain Current (A)	32
Maximum Drain Source Resistance (mOhm)	220(Typ)@6.15V
Typical Input Capacitance @ Vds (pF)	69@32V
Typical Reverse Transfer Capacitance @ Vds (pF)	1.2@32V
Typical Output Capacitance @ Vds (pF)	25@32V
Typical Forward Transconductance (S)	6.4
Output Power (W)	100(Typ)
Typical Power Gain (dB)	18
Maximum Frequency (MHz)	1300
Minimum Frequency (MHz)	1
Typical Drain Efficiency (%)	56
Operating Temperature-Min	-65
Operating Temperature-Max	200
Original Package	LDMOST
Pin Count	5
Terminal Form	Screw
Package Height	5.77(Max)
Package Length	34.16(Max)
Package Width	10.91(Max)
