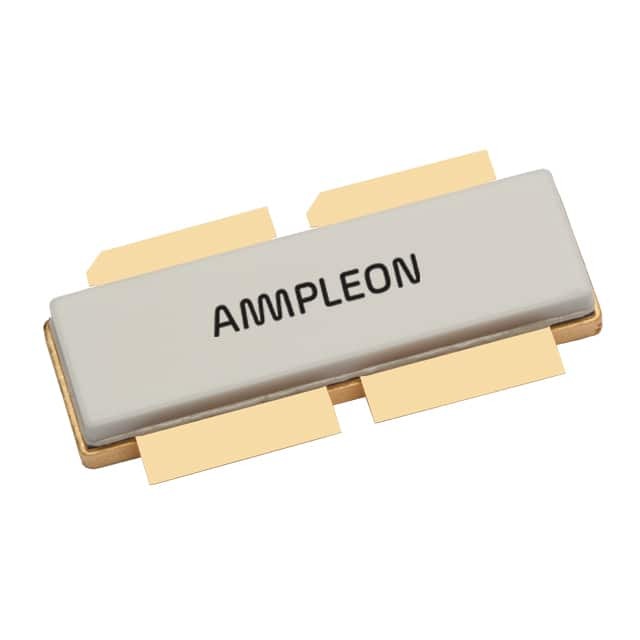

BLA6H0912LS-1000

SKU: 152618

Manufacturer: Ampleon

Trans RF MOSFET N-CH 100V 5-Pin SOT-539B

660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8541.29.00.95
Configuration	Dual Common Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Mode of Operation	Pulsed RF
Process Technology	LDMOS
Maximum Drain Source Voltage (V)	100
Maximum Gate Source Voltage (V)	13
Maximum Gate Threshold Voltage (V)	2.4
Maximum VSWR	5
Maximum Gate Source Leakage Current (nA)	300
Maximum IDSS (uA)	3
Maximum Drain Source Resistance (mOhm)	120@6.15V
Typical Forward Transconductance (S)	2.3(Min)
Output Power (W)	1000(Typ)
Typical Power Gain (dB)	15.5
Maximum Frequency (MHz)	1090
Minimum Frequency (MHz)	1030
Typical Fall Time (ns)	5
Typical Rise Time (ns)	11
Typical Drain Efficiency (%)	50
Operating Temperature-Min	-65
Operating Temperature-Max	225
Original Package	SOT-539B
Pin Count	5
Terminal Form	Surface Mount
Package Height	4.7(Max)
Package Length	32.77(Max)
Package Width	10.29(Max)
