252129 Amphenol RF

252129

SKU: 58190

Manufacturer: Amphenol RF

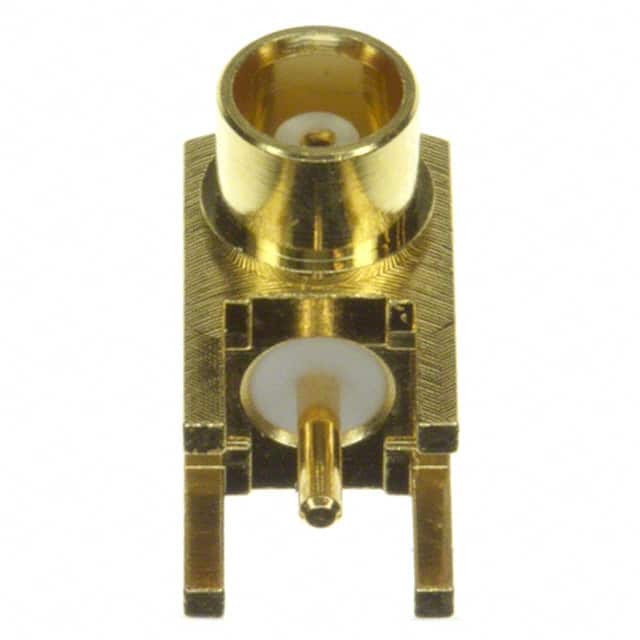

Conn MCX 0Hz to 6GHz 50Ohm Solder RA Thru-Hole RCP Gold

Download sample

Request Free Samples

4560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	MCX
Gender	RCP
Termination Method	Solder
Body Orientation	Right Angle
Contact Gender	SKT
Contact Plating	Gold
Operating Frequency (Hz)	0 to 6G
Maximum Insertion Loss (dB)	0.1
Impedance (Ohm)	50
Mating System	Push On
Mating Cycle (Cycles)	500
Polarity	Standard
Operating Temperature-Min	-65
Operating Temperature-Max	165
Length (mm)	6
Depth (mm)	9.5
Height (mm)	6
