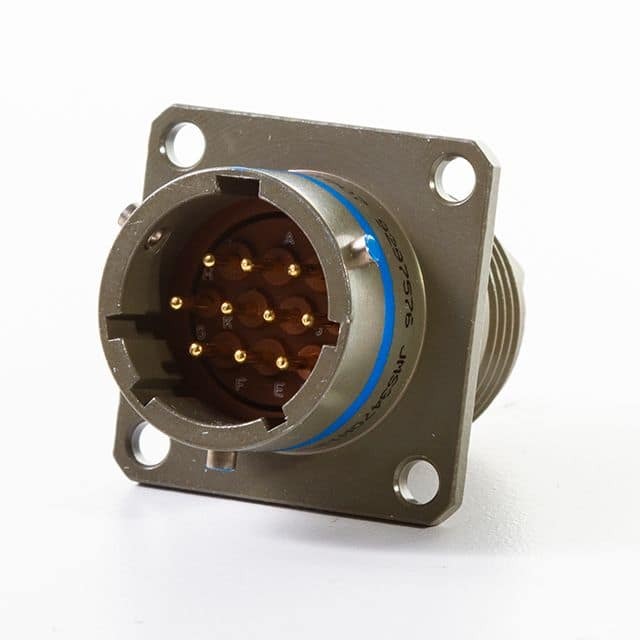

MS3470L18-8PW

SKU: 151135

Manufacturer: Amphenol

Conn Circular PIN 8 POS Crimp ST Wall Mount 8 Terminal 1 Port

1610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Supplier Unconfirmed
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.20
Automotive	No
PPAP	No
Military Standard	MIL-C-26482
Military Standard Series	Series II
Type	Circular
Gender	RCP
Terminal Form	Wall Mount
Body Orientation	Straight
Polarization	W
Number of Ports	1
Number of Contacts	8
Number of Terminals	8
Contact Gender	PIN
Termination Method	Crimp
Shell Size / Insert Arrangement	18-8
Wire Size (AWG)	12-14
Less Contact	No
Shell Body Material	Aluminum
Shell Plating	Electroless Nickel
Voltage Rating-Max	600VAC
Operating Temperature-Min	-65
Operating Temperature-Max	200
Mating Style	Bayonet Lock
Mating Cycle (Cycles)	500
Length (mm)	35.68
Depth (mm)	33.73
