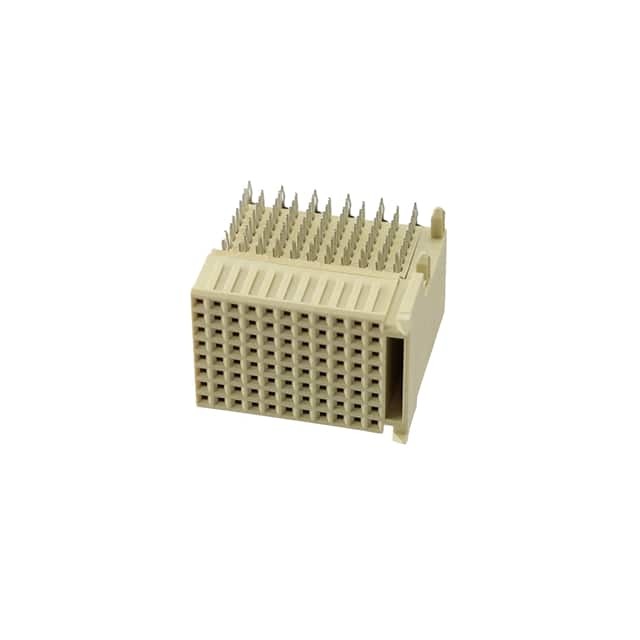

HM2R89PA8108N9LF

SKU: 72822

Manufacturer: Amphenol ICC

Millipacs®, Back Plane Connectors, 2mm Hard Metric Series 8 Row Right Angle Press-Fit Female, Type F with 88 Signal Pins with Shield

3480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Hard Metric
Gender	F
Number of Contacts	88
Termination Method	Press Fit
Terminal Pitch (mm)	2
Body Orientation	Right Angle
Current Rating-Max(A)	1.5/Contact
Voltage Rating-Max	750VAC
Insulation Resistance (MOhm)	10000
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	250
Packing Method	Tray
Length (mm)	24.95
Height (mm)	18.25
