Next6208525310000

59453-041110EDHLF

SKU: 38554

Manufacturer: Amphenol ICC

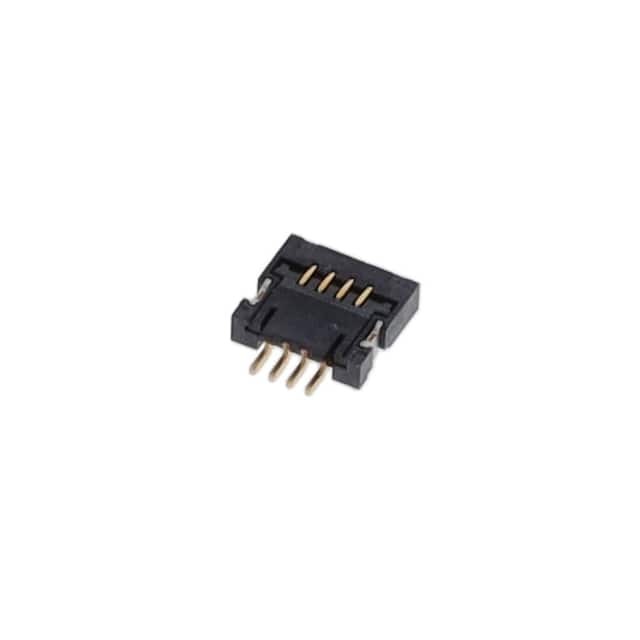

0.50mm Flex Connectors, FPC/FFC Side Entry ZIF Connector, Surface Mount, 4 Positions, Bottom Contact, 0.50mm (0.020in) Pitch

920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	FFC/FPC Connector
Number of Contacts	4
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	0.5
Body Orientation	Right Angle
Contact Gender	SKT
Current Rating-Max(A)	0.4/Contact
Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	30
Operating Temperature-Min	-40
Operating Temperature-Max	85
Mating Cycle (Cycles)	10
Packing Method	Tape and Reel
Length (mm)	3.5
Depth (mm)	4
Height (mm)	0.9
