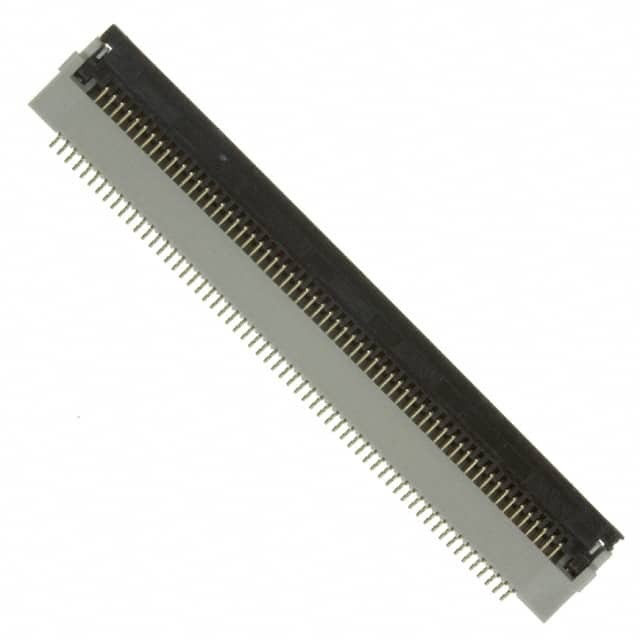

10085901-6015ELF

SKU: 79162

Manufacturer: Amphenol ICC

0.50mm Flex Connector, VHC Series, 60 Position, Lower Side Contact, Side Entry Surface Mount ZIF Connector, Lead Free Type

2520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.80.00
Automotive	No
PPAP	No
Type	FPC Connector
Number of Contacts	60
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	0.5
Body Orientation	Right Angle
Contact Gender	SKT
Current Rating-Max(A)	0.5/Contact
Voltage Rating-Max	50VDC
Insulation Resistance (MOhm)	50
Maximum Contact Resistance (mOhm)	50
Operating Temperature-Min	-55
Operating Temperature-Max	85
Mating Cycle (Cycles)	20
Packing Method	Tape and Reel
Length (mm)	34.2
Depth (mm)	6.2
Height (mm)	2
