10028917-001LF

SKU: 8127

Manufacturer: Amphenol ICC

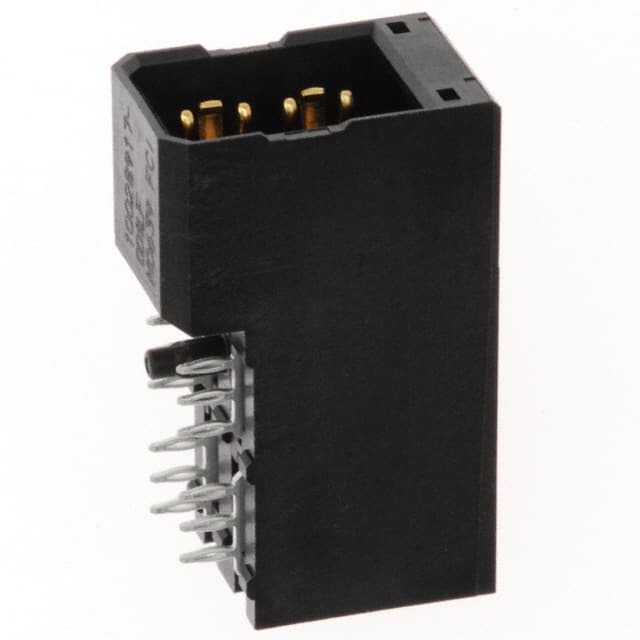

AirMax® Power Connectors, Header, Right Angle, 2x2

3640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Hard Metric
Gender	HDR
Number of Contacts	4Power
Termination Method	Press Fit
Body Orientation	Right Angle
Voltage Rating-Max	150VDC
Maximum Contact Resistance (mOhm)	1
Operating Temperature-Min	-40
Operating Temperature-Max	85
Mating Cycle (Cycles)	100
Packing Method	Tube
Length (mm)	11.85
Depth (mm)	31
Height (mm)	19.1
Tradename	AIRMAX®
Tail Length (mm)	3
