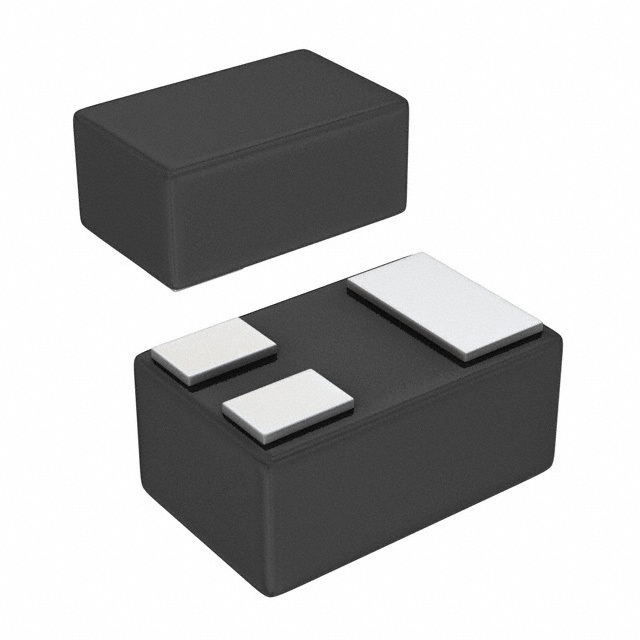

AOZ8831DT-05

SKU: 60403

Manufacturer: Alpha and Omega Semiconductor

ESD Suppressor Diode TVS Bi-Dir 5.5V 2-Pin DFN T/R

2990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
Automotive	Unknown
PPAP	Unknown
Type	TVS
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Maximum Working Voltage (V)	5.5
Minimum Breakdown Voltage (V)	6
Maximum Breakdown Voltage (V)	10
Maximum Clamping Voltage (V)	15
Maximum Peak Pulse Current (A)	6
Maximum Leakage Current (uA)	0.1
Test Current (mA)	0.0001
Peak Pulse Power Dissipation (W)	90
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	DFN
Pin Count	2
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.36
Package Length	1
Package Width	0.6
