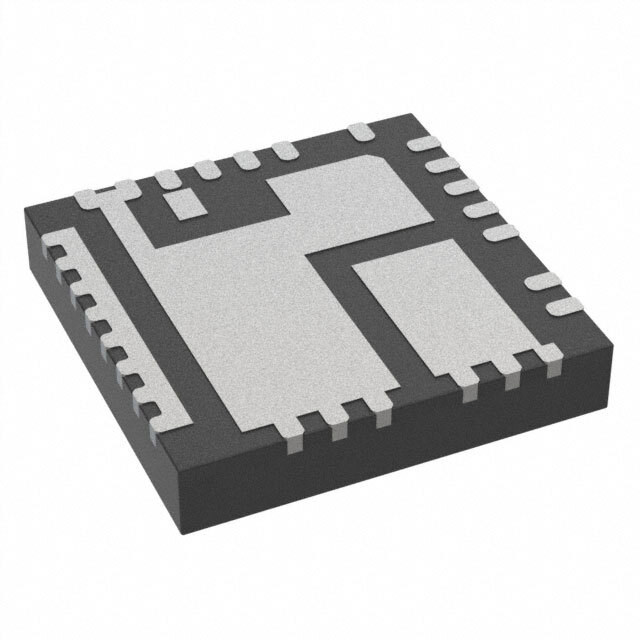

AOZ2368QI-11

SKU: 131014

Manufacturer: Alpha and Omega Semiconductor

Conv DC-DC 4.5V to 24V Synchronous Step Down Single-Out 0.6V to 20.4V 25A 28-Pin QFN EP T/R

1270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Unknown
PPAP	Unknown
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	32 to 1000
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.6 to 20.4
Maximum Output Current (A)	25
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	24
Operating Supply Voltage (V)	4.5 to 24
Typical Switch Current (A)	38(Min)
Typical Quiescent Current (uA)	150
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	28
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	5
Package Width	5
