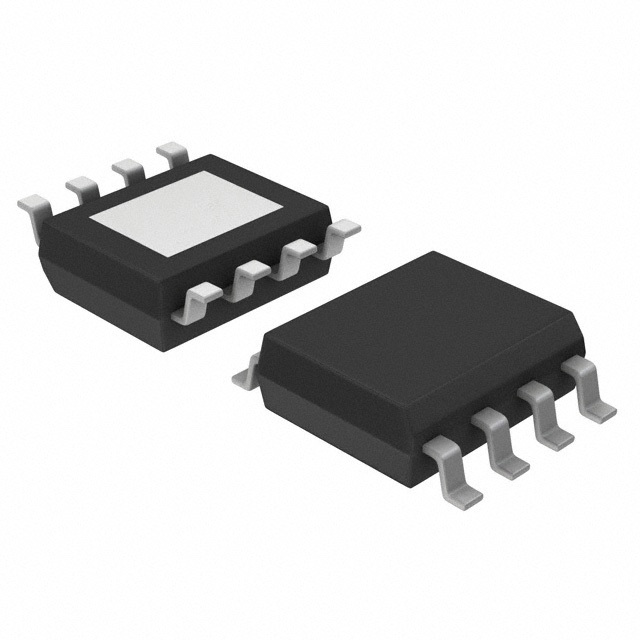

AOZ1284PI

SKU: 10572

Manufacturer: Alpha and Omega Semiconductor

Conv DC-DC 3V to 36V Step Down Single-Out 0.8V to 30V 4A 8-Pin SOIC EP T/R

4970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Type	Step Down
Output Type	Adjustable
Switching Frequency (kHz)	200 to 2000
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.8 to 30
Maximum Output Current (A)	4
Minimum Input Voltage (V)	3
Maximum Input Voltage (V)	36
Operating Supply Voltage (V)	3 to 36
Typical Quiescent Current (uA)	1000
Line Regulation	0.03%/V(Typ)
Load Regulation	0.5%(Typ)
Efficiency (%)	95
Maximum ESD Protection Voltage (kV)	2@HBM
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOIC EP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.5
Package Length	4.96
Package Width	3.9
PCB changed	8
