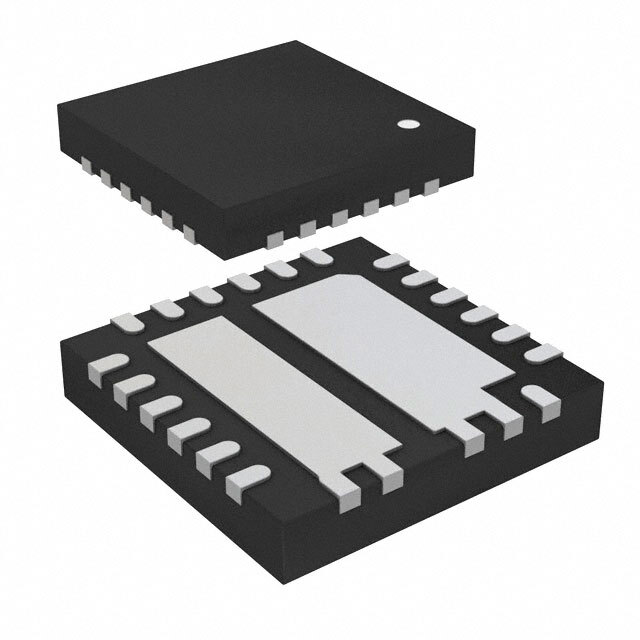

AOZ1268QI-01

SKU: 24816

Manufacturer: Alpha and Omega Semiconductor

Conv DC-DC 6.5V to 28V Synchronous Step Down Single-Out 0.8V to 23.8V 10A 23-Pin QFN T/R

2790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	LTB
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	1000
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.8 to 23.8
Maximum Output Current (A)	10
Minimum Input Voltage (V)	6.5
Maximum Input Voltage (V)	28
Operating Supply Voltage (V)	6.5 to 28
Typical Switch Current (A)	12(Min)
Typical Quiescent Current (uA)	2000
Line Regulation	0.1%(Typ)
Load Regulation	0.5%(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	QFN
Pin Count	23
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	4
Package Width	4
PCB changed	23
