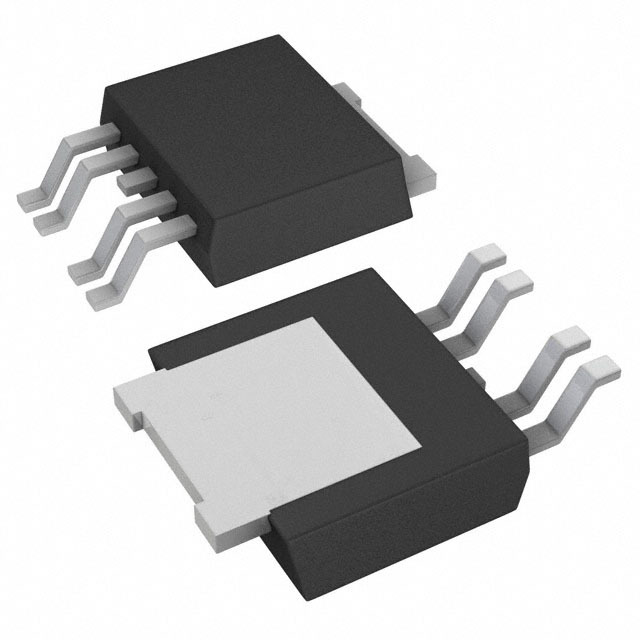

AOD609

SKU: 131009

Manufacturer: Alpha and Omega Semiconductor

Trans MOSFET N/P-CH 40V 12A 5-Pin(4+Tab) DPAK T/R

3710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	Unknown
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Dual Common Drain
Process Technology	TMOS
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	40
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	3
Maximum Continuous Drain Current (A)	12
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	45@10V@P Channel
Typical Gate Charge @ Vgs (nC)	7.2@4.5V@P Channel
Typical Gate Charge @ 10V (nC)	16.2@P Channel
Typical Input Capacitance @ Vds (pF)	900@20V@P Channel
Maximum Power Dissipation (mW)	30000@P Channel
Typical Fall Time (ns)	41.2@P Channel
Typical Rise Time (ns)	8.4@P Channel
Typical Turn-Off Delay Time (ns)	44.8@P Channel
Typical Turn-On Delay Time (ns)	6.2@P Channel
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tape and Reel
Original Package	DPAK
Pin Count	5
Standard Package Method	TO-252
Terminal Form	Surface Mount
Package Height	2.29
Package Length	6.6
Package Width	6.1
PCB changed	4
