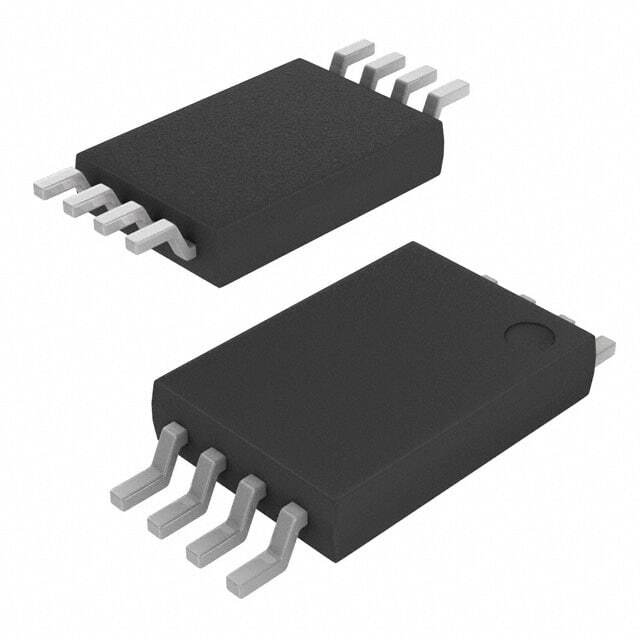

AO8807

SKU: 31914

Manufacturer: Alpha and Omega Semiconductor

Trans MOSFET P-CH 12V 6.5A 8-Pin TSSOP

89210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
Automotive	Unknown
Product Category	Power MOSFET
Configuration	Dual Dual Source
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	12
Maximum Gate Source Voltage (V)	±8
Maximum Continuous Drain Current (A)	6.5
Maximum Drain Source Resistance (mOhm)	20@4.5V
Typical Gate Charge @ Vgs (nC)	19@4.5V
Typical Input Capacitance @ Vds (pF)	1740@6V
Maximum Power Dissipation (mW)	1400
Typical Fall Time (ns)	4200
Typical Rise Time (ns)	580
Typical Turn-Off Delay Time (ns)	7000
Typical Turn-On Delay Time (ns)	240
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TSSOP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1
Package Length	3
Package Width	4.4
PCB changed	8
