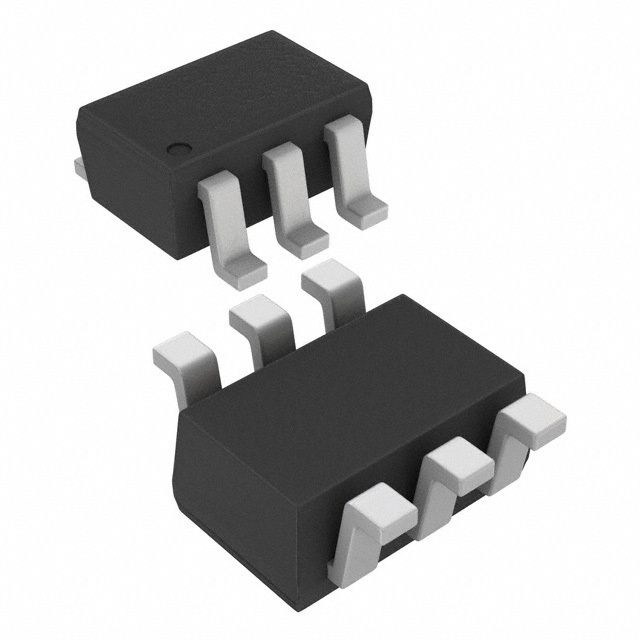

AO7417

SKU: 10568

Manufacturer: Alpha and Omega Semiconductor

Trans MOSFET P-CH 20V 1.9A 6-Pin SC-70 T/R

62390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Unknown
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Single Quad Drain
Process Technology	TMOS
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±8
Maximum Gate Threshold Voltage (V)	1
Maximum Continuous Drain Current (A)	1.9
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	80@4.5V
Typical Gate Charge @ Vgs (nC)	8.5@4.5V
Typical Input Capacitance @ Vds (pF)	560@10V
Maximum Power Dissipation (mW)	570
Typical Fall Time (ns)	56
Typical Rise Time (ns)	36
Typical Turn-Off Delay Time (ns)	53
Typical Turn-On Delay Time (ns)	7.2
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SC-70
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2.1
Package Width	1.3
