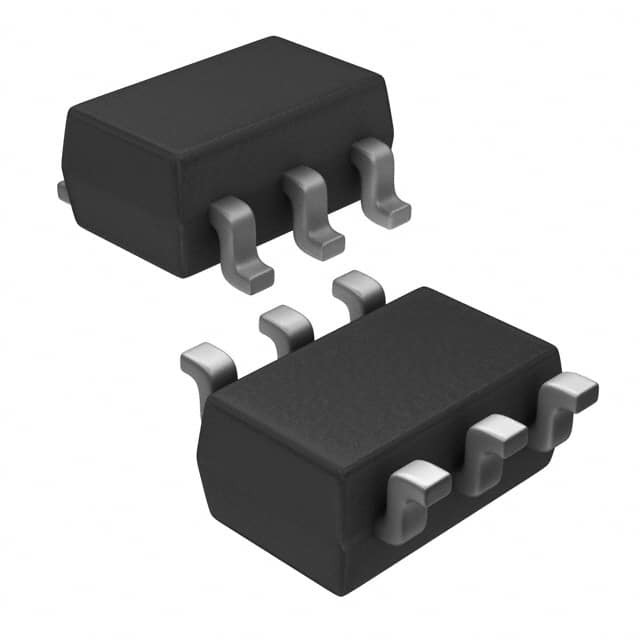

AO6604

SKU: 31912

Manufacturer: Alpha and Omega Semiconductor

Trans MOSFET N/P-CH 20V 3.4A/2.5A 6-Pin TSOP T/R

138100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±8
Maximum Continuous Drain Current (A)	3.4@N Channel
Maximum Drain Source Resistance (mOhm)	65@4.5V@N Channel
Typical Gate Charge @ Vgs (nC)	2.9@4.5V@N Channel
Typical Input Capacitance @ Vds (pF)	260@10V@N Channel
Maximum Power Dissipation (mW)	1100
Typical Fall Time (ns)	3@N Channel
Typical Rise Time (ns)	3.2@N Channel
Typical Turn-Off Delay Time (ns)	21@N Channel
Typical Turn-On Delay Time (ns)	2.5@N Channel
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	TSOP
Pin Count	6
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.6
