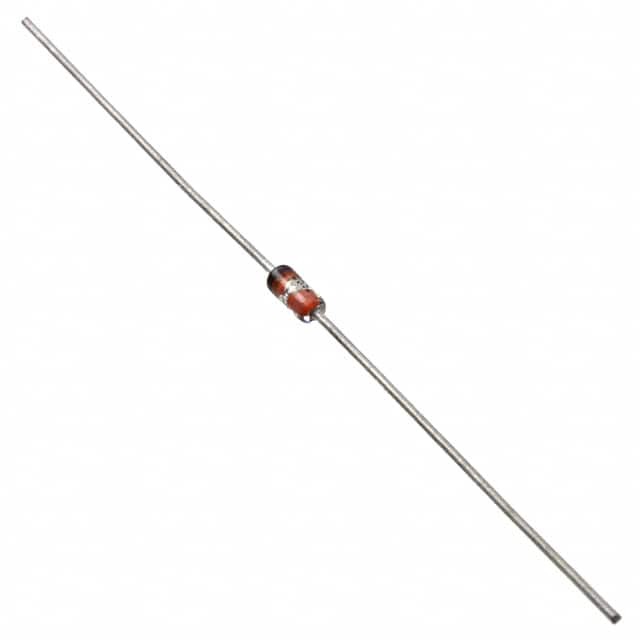

JANTX1N4104-1

SKU: 108153

Manufacturer: Aeroflex

Zener Diode Single 10V 5% 200Ohm 500mW 2-Pin DO-35

2470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
Automotive	Unknown
PPAP	Unknown
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	10
Zener Voltage Tolerance	5%
Maximum Power Dissipation (mW)	500
Test Current (mA)	0.25
Maximum Reverse Leakage Current (uA)	0.5
Maximum Regulator Current (mA)	38
Maximum Zener Impedance (Ohm)	200
Maximum Power Dissipation @ 25C (mW)	500
Maximum Noise Density (uV/rtHz)	40
Operating Temperature-Min	-65
Operating Temperature-Max	175
Supplier Temperature Grade	Military
Original Package	DO-35
Pin Count	2
Standard Package Method	DO-204-AH
Diameter	2.28(Max)
Terminal Form	Through Hole
Package Length	5.08(Max)
PCB changed	2
