    PrevJNW350R641Z
    NextKHHD015A0F41-SRZ

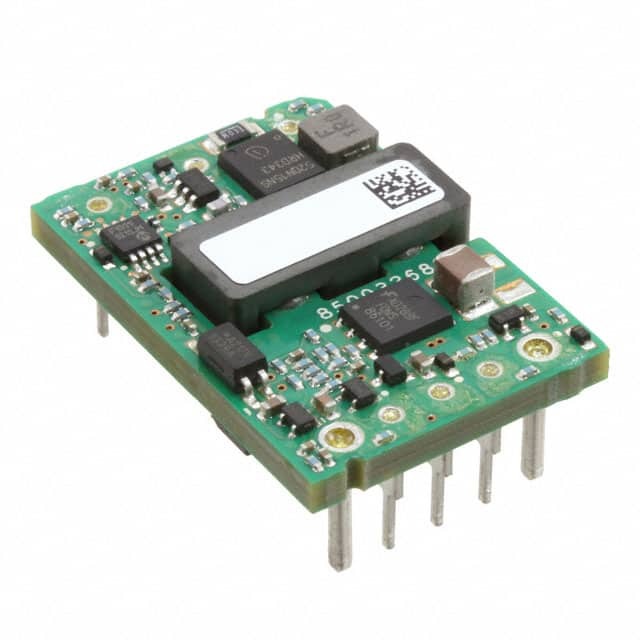

    KHHD002A5B41Z

    SKU: 153711
    Manufacturer: ABB
    Module DC-DC 24V/48VIN 1-OUT 12V 2.5A 8-Pin 1/16-Brick Tray
    Download sample
    Request Free Samples
    2060 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    Part Status Active
    Automotive Unknown
    PPAP Unknown
    Type Step Down
    Number of Outputs 1
    Isolation Isolated
    Minimum Input Voltage (V) 18
    Typical Input Voltage (V) 24/48
    Maximum Input Voltage (V) 75
    Output Voltage (V) 12
    Output Current (A) 2.5
    Minimum Isolation Voltage 2250VDC
    Input/Output Type DC/DC
    Typical Standby Current (mA) 8
    Switching Frequency (kHz) 350(Typ)
    Switching Regulator Yes
    Load Regulation 0.2%Vo
    Line Regulation 0.2%Vo
    Efficiency (%) 89(Min)
    On/Off Logic Negative
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Packing Method Tray
    Product Weight (g) 13
    Output Type Fixed
    Original Package 1/16-Brick
    Pin Count 8
    Standard Package Method Brick
    Terminal Form Through Hole
    Package Height 9.3(Max) - 0.25(Min)
    Package Length 33
    Package Width 22.9
    PCB changed 8
