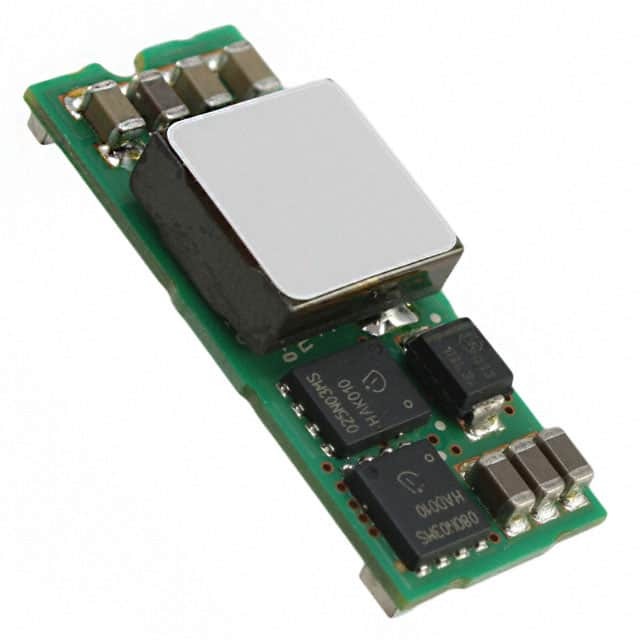

ATH016A0X3-SRZ ABB Installation Products, Inc

ATH016A0X3-SRZ

SKU: 24983

Manufacturer: ABB Installation Products, Inc

Module DC-DC 1-OUT 0.75V to 3.63V 16A 7-Pin SMD Module T/R

Download sample

Request Free Samples

310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
Part Status	Obsolete
Type	Step Down
Isolation	Non-Isolated
Number of Outputs	1
Minimum Input Voltage (V)	2.4
Maximum Input Voltage (V)	5.5
Output Voltage (V)	0.75 to 3.63
Output Current (A)	16
Input/Output Type	DC/DC
Typical Standby Current (mA)	1.5
Switching Frequency (kHz)	300(Typ)
Switching Regulator	Yes
Load Regulation	0.4%Vo(Typ)
Line Regulation	0.3%Vo(Typ)
Efficiency (%)	95(Typ)
On/Off Logic	Negative
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Product Weight (g)	5.6
Output Type	Adjustable
Original Package	SMD Module
Pin Count	7
Terminal Form	Surface Mount
Package Height	8.28
Package Length	33
Package Width	13.5
